The 3600tons per day gold mining production line was shipped to Venezuela recently

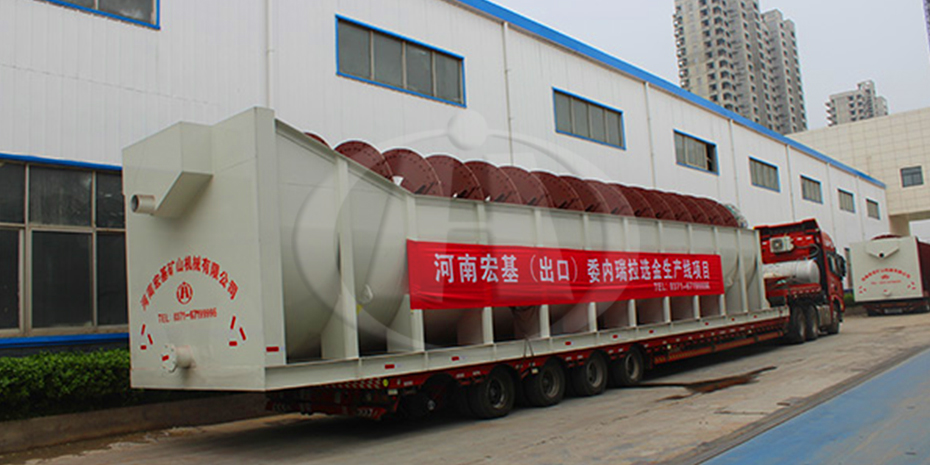

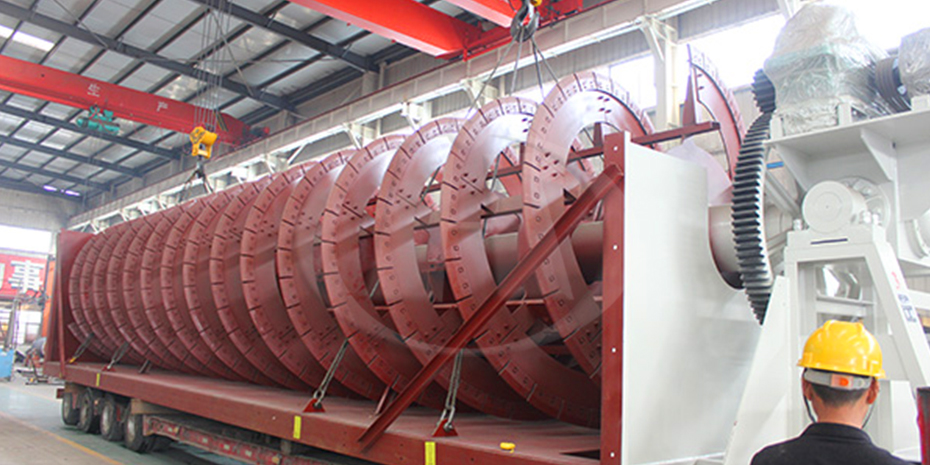

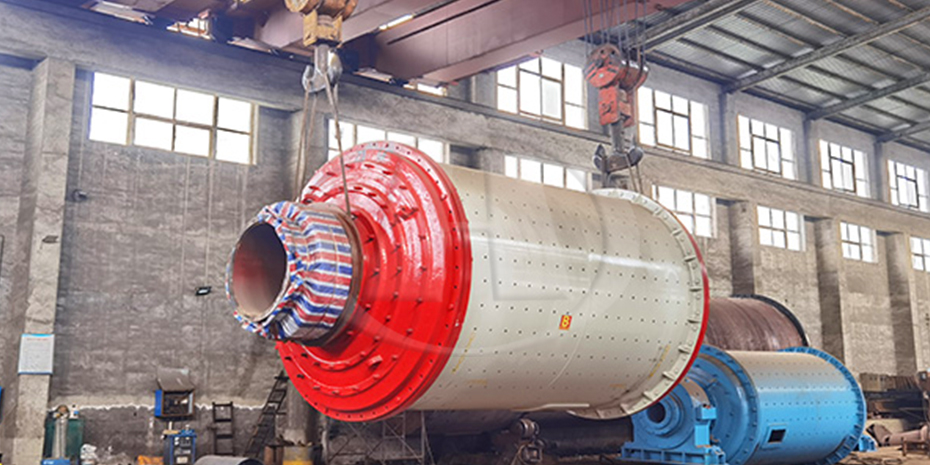

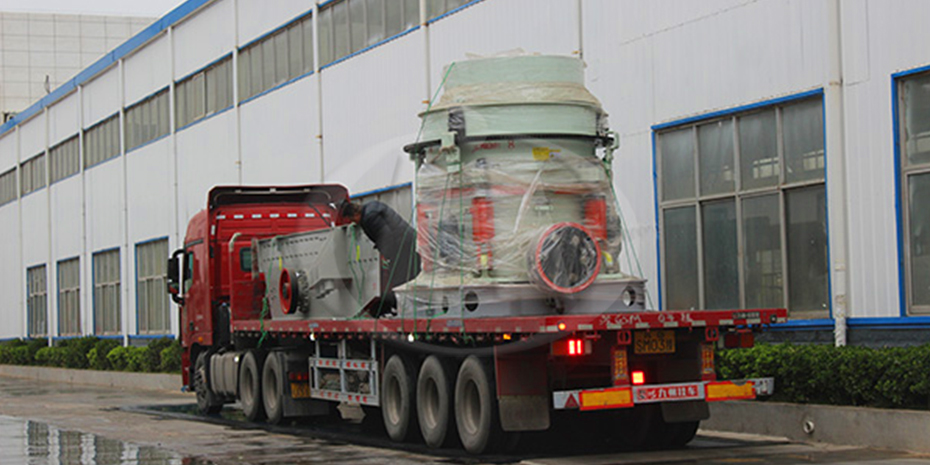

The 3600tons per day gold mining production line was shipped to Venezuela recently. For processing gold ore, the whole line mainly include these following equipments: Jaw crusher, Ball mill, Vibrating screen, Spiral classifer, Belt conveyor, Hydrocyclone, Thickener, Leaching Tank, Electrowinning and desorption device, Gold smelting furnace and so on.

Gold CIL (Carbon in Leach) Process is an efficient design of extracting and recovering gold from its ore. By cyaniding and carbon leaching crushed gold ore slurry simultaneously, CIL process lower the gold mining operation cost and increase gold recovery rate to a degree of 99%. It has become the first choice of modern gold mining and beneficiation plant design.

Gold CIP Production Line adsorbs gold from cyaniding pulp by active carbon including 7 steps: leaching pulp preparation, cyaniding leaching, carbon adsorption, gold loaded carbon desorption, pregnant solution electrodeposit, carbon regeneration, leaching pulp.It is very useful gold recovery method in mineral processing.

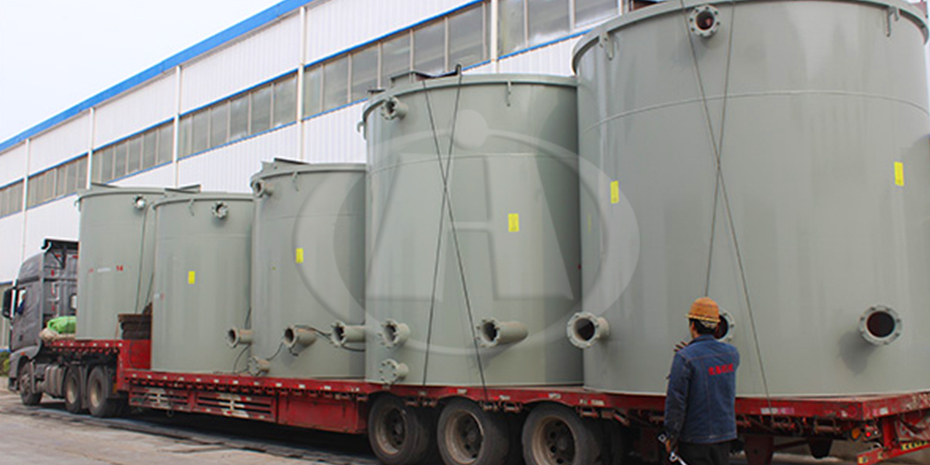

Working Principle: After the crushing and grinding stage, add 9 step-arranged high-efficiency cyanidation leaching tanks into the pulp. Gold pulp cyanidation is carried on the first two leaching tanks, countercurrent adsorption operation is carried on the last six or seven leaching tanks (cyanidation and adding activated carbon simultaneously).

In the adding activated carbon step, add the coconut shell activated carbon (small hole, high activity, wear-resisting and renewable) specially selected by Hongji mineral processing design institute into the pulp, which can dissolve and adsorb the gold and silver ions then form the gold loaded carbon according to the characteristics of gold and silver adsorption. Compared with the traditional gold extraction process, Hongji gold CIL process ensures the gold and silver dissolution and the adsorption of activated carbon synchronously, which will not be affected by the excessive ion concentration, greatly improves the recovery rate of the precious metals (such as silver and copper) in the associated metals , and significantly improves the economic benefits.

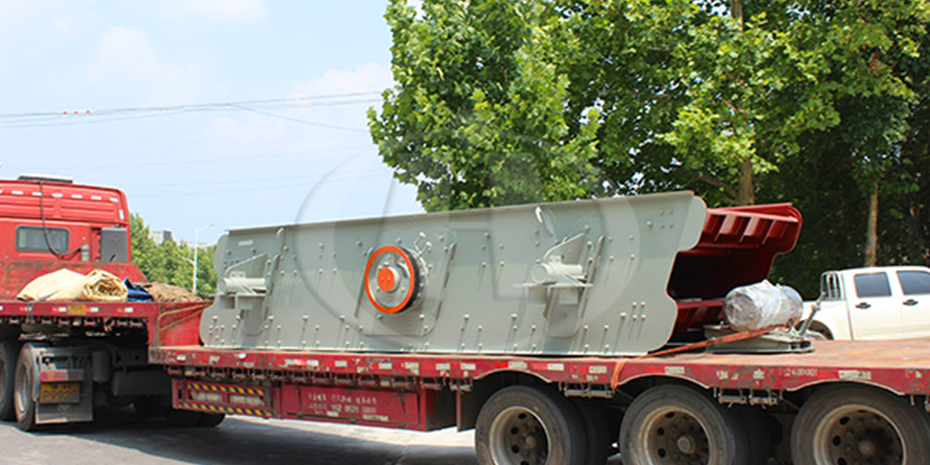

Vibrating screen and dewatering screen are the key equipment for the reverse movement of pulp and carbon. Filter press and high frequency dewatering screen developed by Hongji can effectively reduce the carbon wear on the surface of vibrating screen and in the process of continuous slurry pumping, and reduce the cost, facilitate the maintenance and operation.

Air lifter used in the agitation process can make the slurry carry on small minor-cycle. Hongji air lifter greatly reduces the power consumption by 70%, and make the solid materials suspend uniformly, the wear of activated carbon is small, and the recovery of gold is high, which is an important equipment in the modern gold cyanide plant.

Hongji desorption electrolysis system implements high-temperature desorption electrolysis on gold in the gold-loaded carbon through the mixed liquor of sodium cyanide and sodium hydroxide. After wood chips and other sundries are removed by washing machine, and the gold desorption is carried out by Hongji high-temperature and high-pressure desorption method (150 degrees and 0.5Mpa), which can resolve 99% of gold within 2-6 hours.

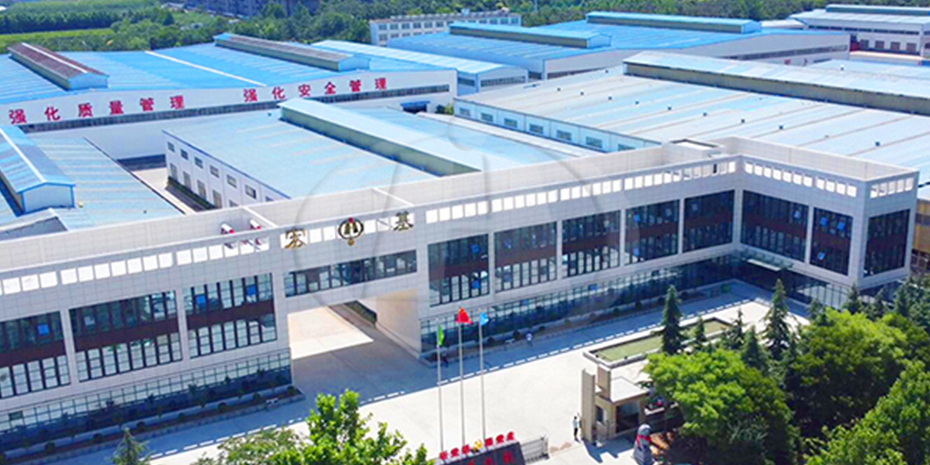

Henan Hongji is a famous leading gold mining equipment manufacturer in China. We have 20 years experience. On domestic market, our products have been extensively employed in key national projects. Besides expansion on domestic market, our products have also been exported to over 40 countries and regions. We are committed to providing customers with excellent mining machines and services.
