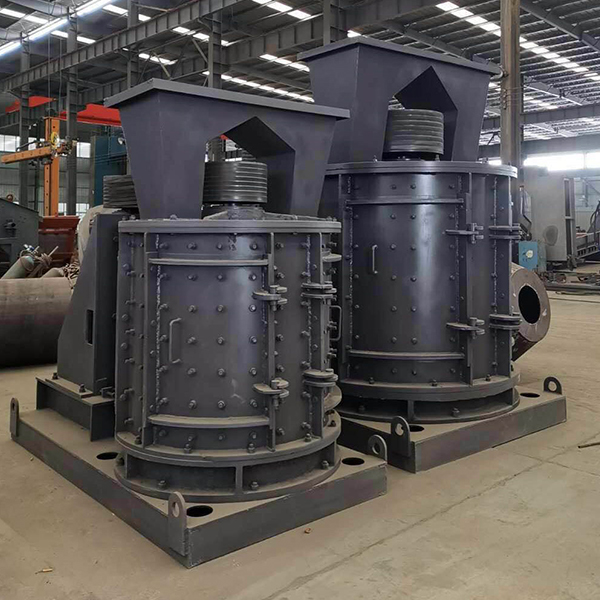

Compound crusher is widely used in medium or fine crushing of hard or special hard materials as mining ore, cement, refractory, bauxite, carborundum, glass raw materials, etc.
SCOPE OF APPLICATION:
Mining, Metallurgy, Refractory, Cement, Coal, Glass, Ceramics, And Electric Power Industries.
Product Description
The compound crusher can crush large materials with much water content, so it’s the ideal machine to crush high moisture materials. The discharging granularity can be adjusted at will, for it adopts the no-grizzly-bar structure to avoid blocking, which is suitable for crushing materials with much silt content. Materials that can’t be crushed will be discharged from the crusher without causing damage to the machine.
Applied material：Barite, marble, talcum, calcite, dolomite, fluorite, kaolin, coal, gypsum, etc.
Features
1. large crushing ratio, no screen bar, no clogging when crushing high moisture and mud materials.
2. Bearings horizontal arrangement, long life, can crush high temperature materials (such as cement clinker).
3. Adopt flexible adjustment mechanism, the non-crushing materials can be automatically discharged, will
not damage the equipment.
4. The rotor block is unique structure; the rotor block will not wear. The back cavity is with screw rod or
hydraulic opening mechanism; you can easily replace wearing parts. not opening the equipment.
Parameter
| Model | Cylinder Diameter (mm) |
Capacity (t/h) |
Input Size (mm) |
Discharge Size (mm) |
Motor Power (kw) |
Dimensions (kw) |
|---|---|---|---|---|---|---|
| PFL800 | 800 | 10-20 | <90(30mm) | <5 80-95% | 18.5-22 | 2100x1200x1700 |
| PFL1000 | 1000 | 20-40 | <120(30mm) | <5 80-95% | 45-55 | 2600x1400x1900 |
| PFL1250 | 1250 | 30-60 | <150(30mm) | <5 80-95% | 75-90 | 2800x1600x2100 |
| PFL1500 | 1500 | 50-100 | <180(50mm) | <5 80-95% | 132-160 | 3100x1900x2200 |
| PFL1750 | 1750 | 80-150 | <180(50mm) | <5 80-95% | 185-200 | 3710x2360x2390 |
| PFL2000 | 2000 | 100-180 | <190(50mm) | <5 80-95% | 220-250 | 4100x2660x2620 |
