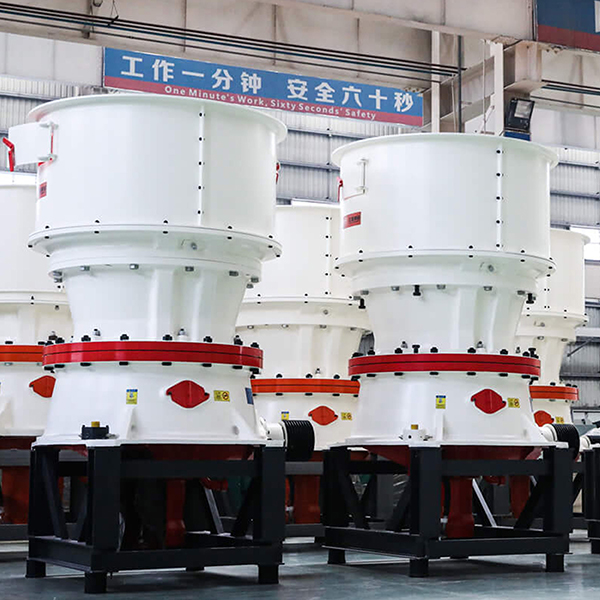

This series of hydraulic cone crusher is the new type multi-cylinder hydraulic cone crusher produced by our company. It is specially designed to crush the material with medium and high hardness, such as basalt, stone, limestone, ore, etc.
SCOPE OF APPLICATION:
Mining, Building Materials, Transportation, Energy, Chemical and other industries.
Product Description

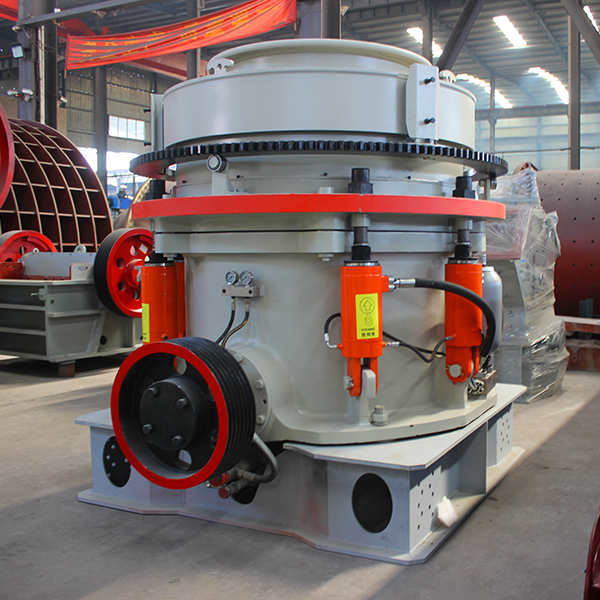

The multi-cylinder hydraulic cone crusher is a world-class high-energy cone crusher developed by the latest introducing technology from Germany. It is the perfect combination of crushing speed, eccentricity (stroke) and high-performance crushing cavity design. It not only improves productivity and crushing efficiency, but also expands the range of applications, from limestone to basalt, stone production to various ore crushing, which provides unique crushing performance in a variety of medium, fine, and superfine operations. Its high speed, high crushing capacity and unique patented design makes the finished product with extremely high-quality cube shape, and the easy maintenance features ensure extraordinarily high stability operation. It is famous all over the world and mining construction industry, a replacement for spring cone crushers and the latest generation of newer hydraulic cone crushers.
Applied material : Quartz, River Pebbles, Calcite, Dolomite, Granite, Basalt, Iron Ore, Limestone, Diabase, Bluestone, Construction Waste, etc.
Parameter
| Model | Cavity Type | Minimum Discharge Opening (mm) |
Material Inlet (mm) |
Capacity (t/h) |
Motor Power (kw) |
Capacity (t/h) |
Weight (t) |
|---|---|---|---|---|---|---|---|
| HP200 | F(细) | ≥13 | 95 | 120-200 | 160 | 90-250 | 12 |
| M(中) | ≥16 | 120 | 140-220 | ||||
| C(粗) | ≥19 | 190 | 150-250 | ||||
| HP300 | F(超细) | ≥10 | 80 | 100-240 | 250 | 110-440 | 20 |
| F(细) | ≥13 | 105 | 110-260 | ||||
| M(中) | ≥16 | 150 | 175-320 | ||||
| C(粗) | ≥20 | 210 | 190-380 | ||||
| EC(超粗) | ≥25 | 230 | 220-440 | ||||
| HP400 | F(细) | ≥14 | 110 | 185-345 | 315 | 140-630 | 26 |
| M(中) | ≥20 | 196 | 255-430 | ||||
| C(粗) | ≥25 | 251 | 295-560 | ||||
| EC(超粗) | ≥30 | 295 | 325-630 | ||||
| HP500 | F(超细) | ≥13 | 95 | 200-430 | 400 | 175-790 | 40 |
| F(细) | ≥16 | 135 | 280-455 | ||||
| M(中) | ≥22 | 210 | 345-605 | ||||
| C(粗) | ≥30 | 290 | 405-790 | ||||
| EC(超粗) | ≥38 | 330 | 445-855 | ||||
| HP800 | F(超细) | ≥13 | 150 | 310-600 | 630 | 260-1200 | 70 |
| F(细) | ≥16 | 220 | 370-800 | ||||
| M(中) | ≥25 | 265 | 475-950 | ||||
| C(粗) | ≥32 | 299 | 520-1050 | ||||
| EC(超粗) | ≥38 | 350 | 570-1200 |
