Jaw crusher is used in primary crushing for stones and bulk materials. It processes various kinds of ore with compression strength not more than 320mp.
SCOPE OF APPLICATION:

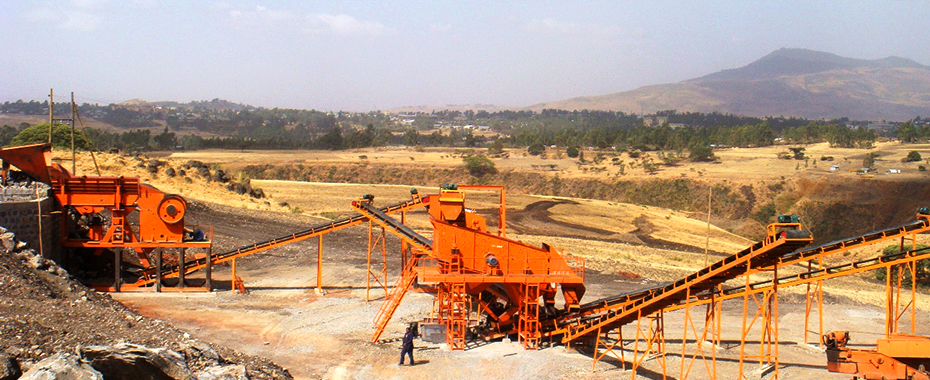

Ballast, gravel quarry, mining, coal mining, concrete mixing plants, dry mortar,desulfurization plant, quartz sand.
Product Description
Jaw crusher is used in primary crushing for stones and bulk materials. It processes various kinds of ore with compression strength not more than 320mp. It has been widely applied in area of is widely used in mining, quarry, metallurgy, building, highway, railway, construction wastes processing, water conservancy and cement production, etc.

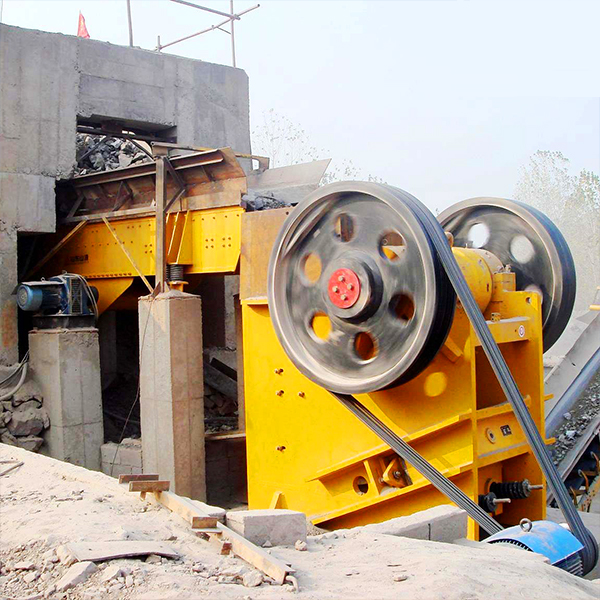

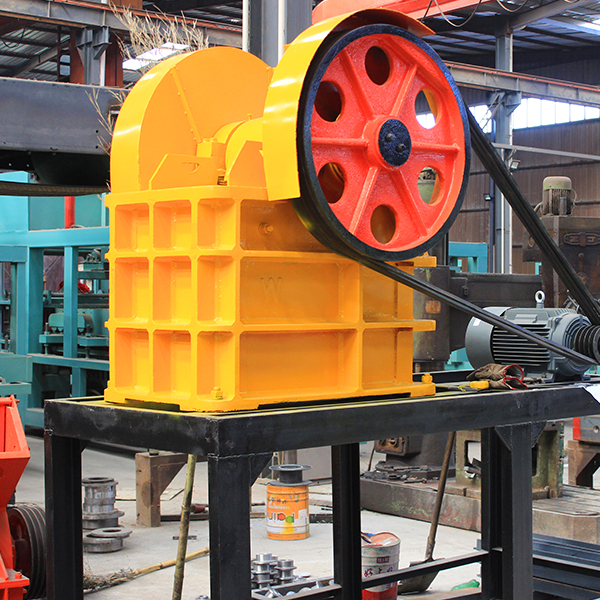

The belt and belt pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring, then the end products come out from the crushing cavity.

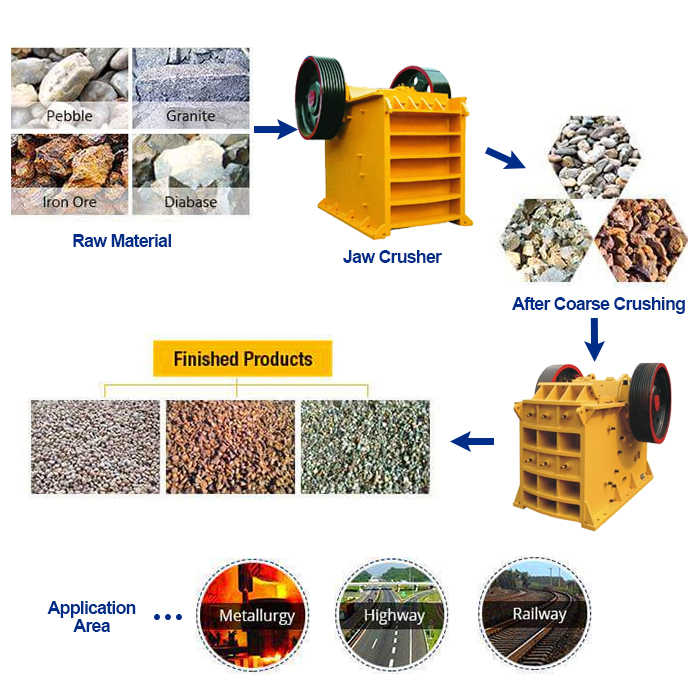

Applied material: River gravel, granite, basalt, iron ore, gold stone，limestone, quartz stone, coal gangue, construction waste and so on.
Features
Parameter
| Model | Opening Size (mm) |
Max Feed Length (mm) |
Output Size (mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
Overall Dimension (mm) |
|---|---|---|---|---|---|---|---|
| PE150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 896 ×745×935 |
| PE200×350 | 200×350 | 180 | 15-50 | 1-6 | 11 | 1.2 | 996×800×760 |
| PE250×400 | 250×400 | 200 | 20-50 | 5-20 | 15 | 3 | 1430×1310×1340 |
| PE400×600 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 7 | 1700×1732×1653 |
| PE500×750 | 500×750 | 425 | 50-100 | 50-100 | 45-55 | 12 | 2035×1921×2000 |
| PE600×900 | 600×900 | 480 | 65-165 | 60-130 | 55-75 | 17 | 2290×2206×2370 |
| PE750×1060 | 750×1060 | 630 | 80-140 | 80-180 | 90-110 | 29 | 2655×2302×3110 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 140-260 | 110-132 | 58 | 3800×3166×3045 |
| PE1000×1200 | 1000×1200 | 850 | 200-200 | 280-560 | 132-160 | 69 | 5350×4280×3050 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 | 6380×5310×3710 |
| PEX150×750 | 150×750 | 125 | 18-50 | 5-16 | 15 | 3.8 | 896×745×935 |
| PEX250×750 | 250×750 | 210 | 25-60 | 15-30 | 22-30 | 5 | 1667×1545×1020 |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 15-50 | 30-37 | 7 | 1550×1964×1380 |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 2192×1900×1950 |
| PEX300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 55 | 15.6 | 2720×1950×1600 |
