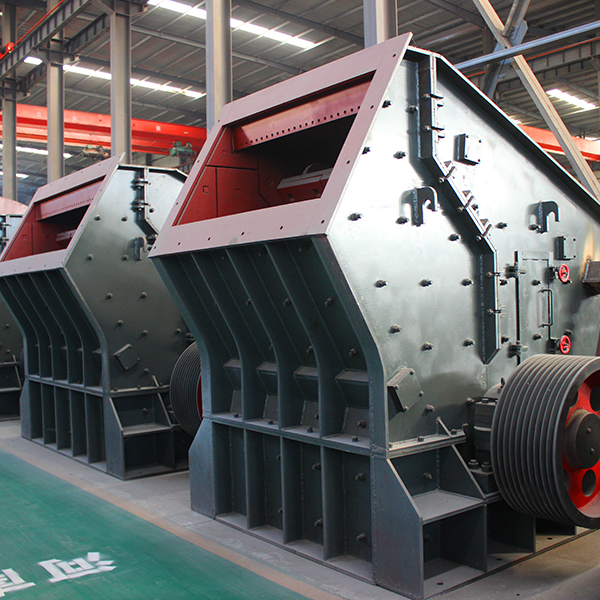

Impact Crusher is a new product designed by our company after absorbing the advanced technology at home and abroad. It has the features of high ratio of crushing, high efficiency of crushing, easy to maintenance, etc., The final products are with cubic shapes and are ideal for the highway and hydraulic power construction.
SCOPE OF APPLICATION:
Widely used in various ore crushing, mining, metallurgy, building materials, highway, railway, chemical, construction, and other industries.
Product Description
Thousands of Hongji PF Series Impact Crushers are installed all over the world in recent 20 years. It has been proved that this series of crushers not only effectively increase productivity and final product quality, but also greatly reduce the investment costs and operation costs. Unmatched excellent performance is shown in the secondary crushing, tertiary crushing, and material recovery.
Applied material ：Limestone, granite, marble, basalt, iron ore, river pebbles, coal cobblestones, construction waste, etc.
Features
1.Feed hale is big. crushing chamber is high large size less power.
2.Clearance between impact plate and blow bar is easy to be adjusted. The final product size can be controlled easily.
3.Final product is of cubic shape.
4.High chrome blow bar.it is wearable.
5.No-board connection is easy to be checked.
6.High crushing ratio: comprehensive benefits is high.
Parameter
| Model | Rotor Size (mm) |
Feed Opening (mm) |
Max Feed Size (mm) |
Production Capacity (t/h) |
Power (kw) |
Weight (t) |
Overall Dimension (mm) |
|---|---|---|---|---|---|---|---|
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 12 | 2330x1660x2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-55 | 15 | 2370x1700x2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 17.7 | 2680x2160x2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 100-180 | 6P 132 | 22.4 | 2650x2460x2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 180-280 | 6P 200 | 27 | 3180x2720x3120 |
| PF-1320 | Φ1300×2000 | 993×2000 | 500 | 280-380 | 6P 250 | 34 | 3220x3100x3120 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 380-550 | 4P 315-400 | 50.6 | 3959x3564x3330 |
