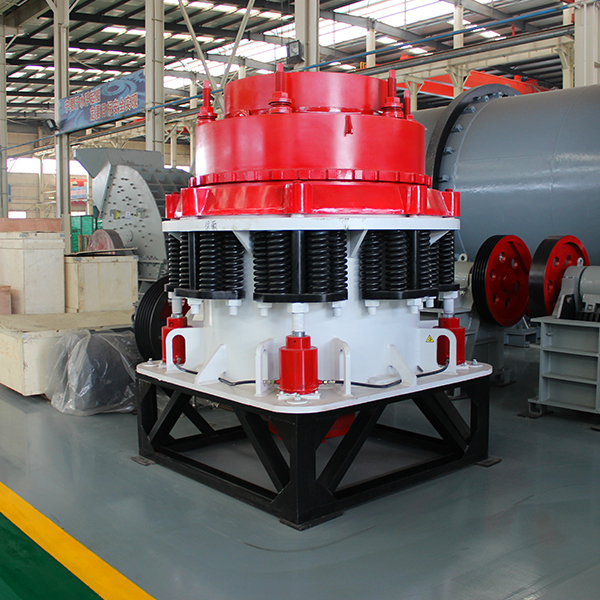

Symons hydraulic cone crusher is an optimized and improved high-efficiency model based on the PY spring cone crusher. Widely used in mining, building materials, metallurgy and other industries, suitable for medium and fine crushed basalt, river pebbles, granite, quartz stone, metal ore and other high-hardness materials.
SCOPE OF APPLICATION:
Sand and gravel yard, mining, concrete mixing station, dry powder mortar and other fields.
Product Description
Symons hydraulic cone crusher is designed and developed by our company on the basis of introducing and absorbing foreign technology， according to the needs of customers, based on the principle of lamination and crushing and the concept of more crushing and less grinding, which integrates high swing frequency optimized cavity type and reasonable stroke. of modem high performance hydraulic cone crushers. Practice has proved the Symons hydraulic cone crusher has won the trust of users around the world with its excellent performance, reliable quality, and high-cost performance, and is an ideal substitute for traditional cone crushers.
Applied material：Basalt, granite, limestone, gravel, quartz, iron ore, copper ore, gold ore and other minerals in mining.
Features
Parameter
| Model | Cavity Type | Max feed size (mm) |
The adjustment range of the discharge port (mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (t) |
Dimension (mm) |
|---|---|---|---|---|---|---|---|
| CZS75B | 细型 | 85 | 9-22 | 45-91 | 75 | 14.5 | 2656×1746 ×2410 |
| 粗型 | 150 | 13-38 | 59-163 | ||||
| 特粗型 | 152 | 25-38 | 118-163 | ||||
| CZS75D | 细型 | 35 | 3-13 | 27-90 | 15 | ||
| 中型 | 65 | 5-16 | 36-100 | ||||
| 粗型 | 85 | 6-19 | 59-129 | ||||
| CZS160B | 细型 | 115 | 13-31 | 109-181 | 160 | 26.5 | 2958×2354 ×3156 |
| 中型 | 178 | 16-38 | 132-253 | ||||
| 粗型 | 205 | 19-51 | 172-349 | ||||
| 特粗型 | 220 | 25-51 | 236-358 | ||||
| CZS160D | 细型 | 54 | 3-16 | 36-163 | 27 | ||
| 中型 | 76 | 6-16 | 82-163 | ||||
| 粗型 | 89 | 8-25 | 109-227 | ||||
| 特粗型 | 113 | 16-25 | 209-236 | ||||
| CZS220B | 细型 | 178 | 16-38 | 181-327 | 220 | 51 | 3941×2954×3771 |
| 中型 | 205 | 22-51 | 258-417 | ||||
| 粗型 | 228 | 25-64 | 299-635 | ||||
| 特粗型 | 313 | 38-64 | 431-645 | ||||
| CZS220D | 细型 | 60 | 5-13 | 90-209 | 52 | ||
| 中型 | 76 | 6-19 | 136-281 | ||||
| 粗型 | 113 | 10-25 | 190-336 | ||||
| 特粗型 | 125 | 13-25 | 253-336 | ||||
| CZS315B | 细型 | 236 | 19-38 | 381-726 | 315 | 90 | 4613×3251 ×4732 |
| 中型 | 284 | 25-51 | 608-998 | ||||
| 粗型 | 314 | 31-64 | 789-1270 | ||||
| 特粗型 | 391 | 38-64 | 880-1361 | ||||
| CZS315D | 细型 | 89 | 5-16 | 190-408 | 92 | ||
| 中型 | 113 | 10-19 | 354-508 | ||||
| 粗型 | 151 | 13-25 | 454-599 | ||||
| 特粗型 | 172 | 16-25 | 508-653 |
