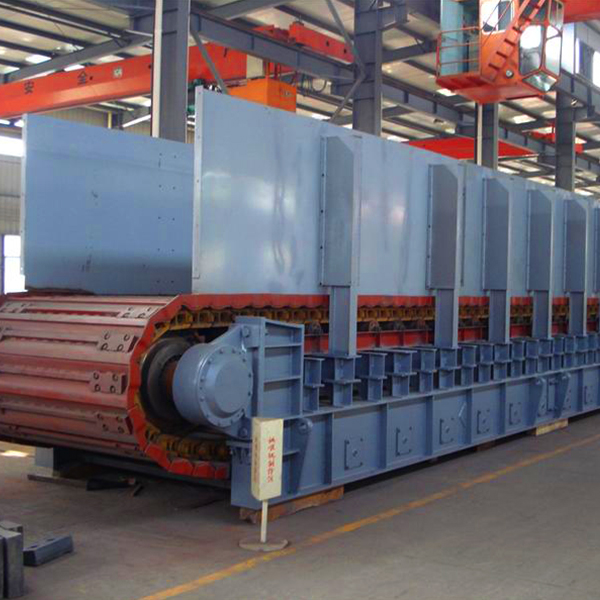

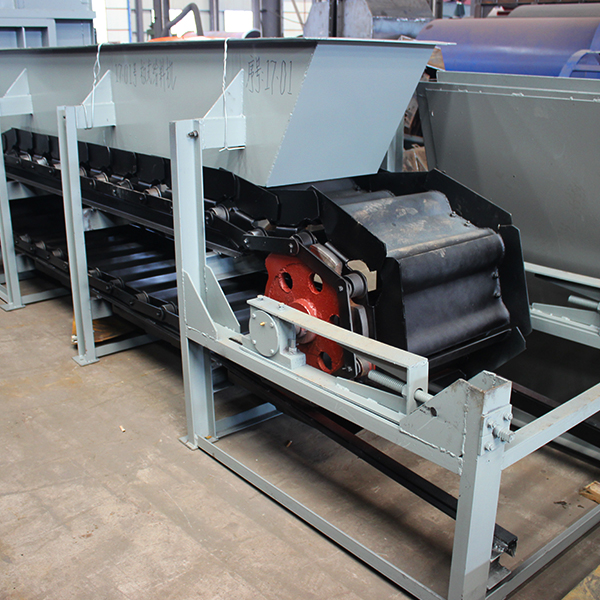

This apron feeder is used to feed primary crusher continuously and uniformly in crushing/classifying workshop of large-scale beneficiation plant, or cement or building material sectors. It can be also used to convey materials with bigger particle sizes and specific gravities in a short distance.
SCOPE OF APPLICATION:
Nonferrous metals, mining, cement, fertilizer, chemical, metallurgical, paper, mining, dressing, ingredients industries, etc.
Product Description
BW type and BZ type apron feeder is one of the materials conveying equipment, the intermittent feeding into continuous feeding. Based on foreign advanced technology, our company developed new model BW and BZ apron feeder. With advantage of big traction, low material leakage, smooth operation, long service life and convenient maintenance.
Features
1. Compact structure, reliable quality.
2. Wide application, high efficiency.
3. It can be installed both horizontally and slantly with the maximum slope angle of 12 degree.
4. The max feed size can reach 1000 mm.
Parameter
| Model | Inlet size (LxW)(mm) |
Outlet size (LxW)(mm) |
Eccentric stroke (mm) |
Swinging frequency (n/min) |
Max feed size (mm) |
Feeding capacity (t/h) |
Motor Model |
Motor Power (kw) |
Motor speed (r/min) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| BG300x300 | 300×300 | 300x(30-125) | 0-90 | 46 | 30 | 6.5 | Y802-4 | 0.75 | 1390 | 272 |
| BG400x400 | 400×400 | 400x(50-130) | 0-170 | 45.5 | 35 | 12 | Y90S-4 | 1.1 | 1410 | 558 |
| BG600x600 | 600×600 | 600x(50-150) | 0-157 | 48 | 50 | 40-80 | Y100L-4 | 1.5 | 940 | 613 |
