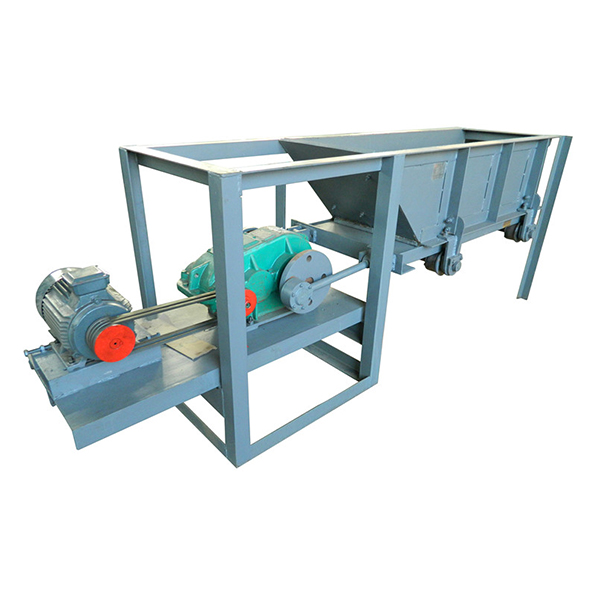

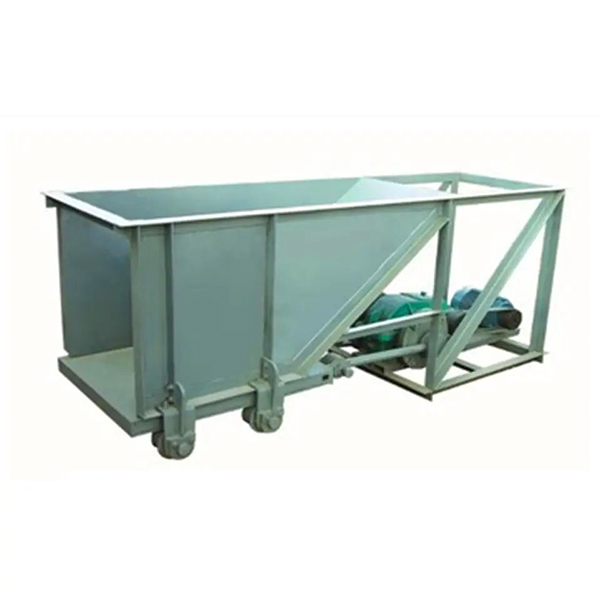

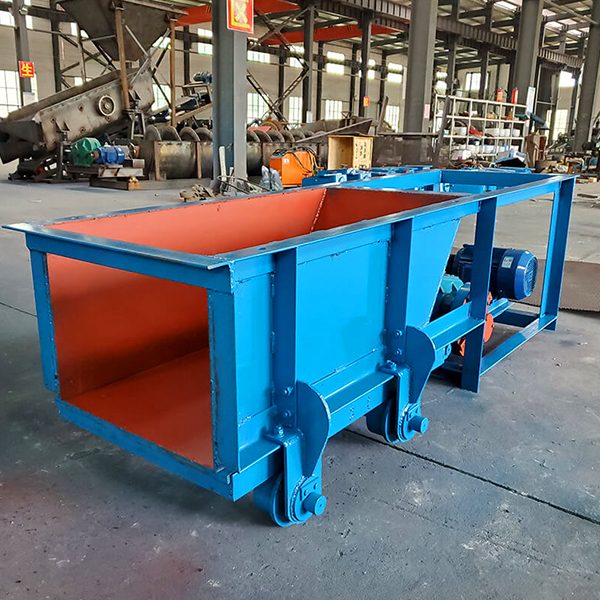

The chute feeder (also called slot type) can be installed on the ground, also can be lifting unloading port in the ore bin. It is through the base of reciprocating motion, the massive material storage silos by delivery to the receiving device, not suitable for conveying powder material.
SCOPE OF APPLICATION:
Smelting, mining, chemical, building material, concentrating and coal, etc.
Product Description
The chute feeder (also called slot type, trough feeder, swing feeder) is suitable for industrial sectors such as metallurgy, mining, protection, construction, mineral processing, coal, and so on. The blocky material is transported from the storage bin to receiving device (not suitable for transporting powder state).
Applied material：Short distance feeding material size 160 mm below the block material.
Features
1. The advantages of simple structure, uniform feeding, continuous performance.
2. At any time to change and control flow, easy to operate adjusting to the number of ore.
3. Smooth transmission, high transmission efficiency.
4. Compact structure, reasonable design.
5. Good quality, wide range of uses.
Parameter
| Model | Outlet Size (mm) |
Max Feed Size (mm) |
Feeding Capacity (t/h) |
Motor Model | Motor Power (kw) |
Weight (kg) |
|
|---|---|---|---|---|---|---|---|
| Width | Height | ||||||
| CG300x300 | 300 | 300 | 50 | 10-20 | Y90L-4 | 1.5 | 265 |
| CG400x400 | 400 | 400 | 100 | 10-30 | YCT160-4A | 2.2 | 640 |
| CG600x500 | 600 | 500 | 200 | 10-50 | Y112M-4 | 4 | 1045 |
| CG700x500 | 700 | 500 | 200 | 10-60 | Y112M-4 | 4 | 1100 |
| CG1240x980 | 1240 | 980 | 350 | 36-90 | Y160M-6 | 7.5 | 1710 |
