It is applicable to feed non viscous material, but not suitable for powder materials with good flow ability. The suitable feeding material: powder, granular or small bulk materials such as coal powder, cement, clinker, limestone, clay, gypsum, slag etc.
SCOPE OF APPLICATION:
A variety of non-sticky materials metallurgy, mining, building materials, coal, electricity, and other sectors of the feed.
Product Description

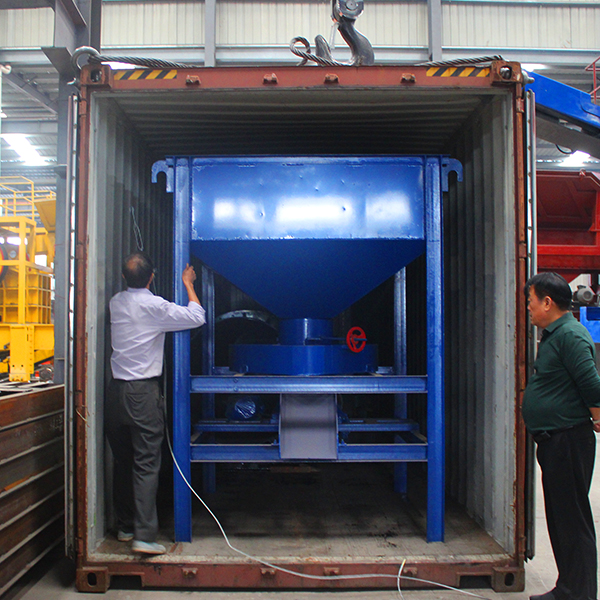

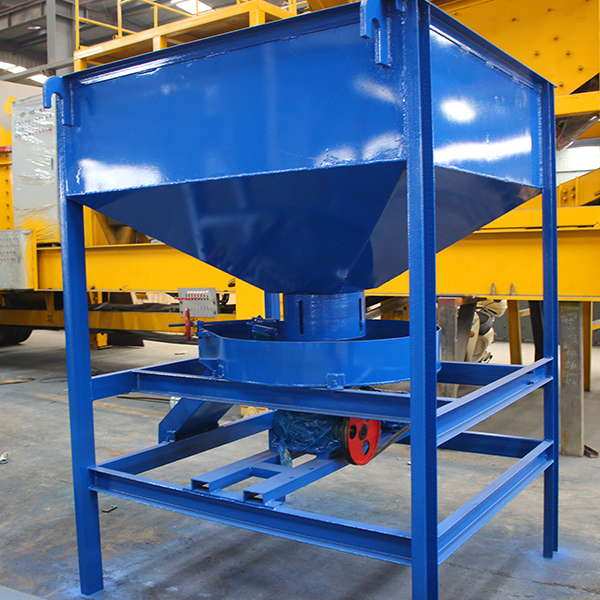

The main function of the disk feeder/disc feeder is to provide material supply for other equipment. The use of the disc feeder enables the material to enter one piece of equipment evenly so that the next process can work normally and saves labor moreover, the utility model protects the performance of the equipment and extends the service life of the whole production line equipment. Disc feeder is an indispensable accessory product of process mining.
Applied material：Slag, clinker, cement, gypsum, coal, limestone, clay, slag powder, granular or small block material, etc.
Features
Parameter
| Type | Model | Disc diameter (mm) |
Disk speed (r/min) |
Max feed size (mm) |
Feeding capacity (t/h) |
Motor Model | Motor Power (kw) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| Closed hanging | YG300 | 300 | 10.0 | 20 | 0-1.8 | Y80L-4 | 0.55 | 115 |
| YG400 | 400 | 10.7 | 20 | 0-2.6 | Y90L-6 | 1.1 | 120 | |
| YG500 | 500 | 10.7 | 20 | 0-3.3 | Y90L-6 | 1.1 | 124 | |
| YG600 | 600 | 10.0 | 20 | 0-5.0 | Y90L-6 | 1.1 | 130 | |
| YG800 | 800 | 9.0 | 30 | 0-8.0 | Y80L-4 | 0.55 | 195 | |
| YG1000 | 1000 | 9.0 | 30 | 0-12 | Y90L-4 | 1.5 | 263 | |
| YG1500 | 1500 | 7.0 | 40 | 0-22 | Y132M2-6 | 5.5 | 755 | |
| YG2000 | 2000 | 5.0 | 50 | 0-80 | Y160L-6 | 11 | 2517 | |
| Open hanging | DK600 | 600 | 7.53 | 25 | 1.8-3.9 | Y90L-6 | 1.1 | 410 |
| DK800 | 800 | 7.53 | 30 | 3.5-7.6 | Y90L-6 | 1.1 | 600 | |
| DK1000 | 1000 | 7.50 | 40 | 1.8-16.7 | Y100L-6 | 1.5 | 725 | |
| DK1300 | 1300 | 6.50 | 50 | 4.3-27.9 | Y132S-6 | 3 | 846 | |
| DK1600 | 1600 | 6.0 | 60 | 7.03-48.6 | Y132M1-6 | 4 | 1980 | |
| DK1800 | 1800 | 5.0 | 70 | 9.26-60 | Y132M2-6 | 5.5 | 3070 | |
| DK2000 | 2000 | 5.0 | 80 | 13.6-88.4 | Y132M3-6 | 5.5 | 3260 |
