It is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food, and other industries. It is used for automatic matching, quantitative package, and automatic regulating process. It can feed lump, granular, and powdered materials from the storage silo or hopper to devices uniformly or quantitatively.
SCOPE OF APPLICATION:
Concentrator, smelter, cement plant, sands, mechanized foundry etc.
Product Description

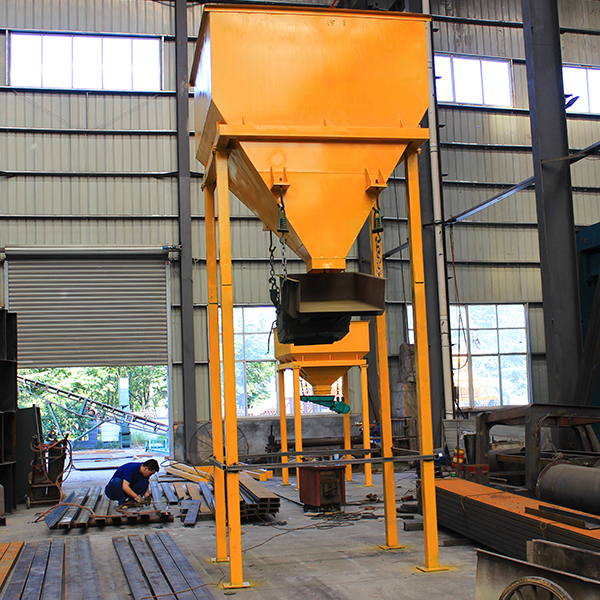

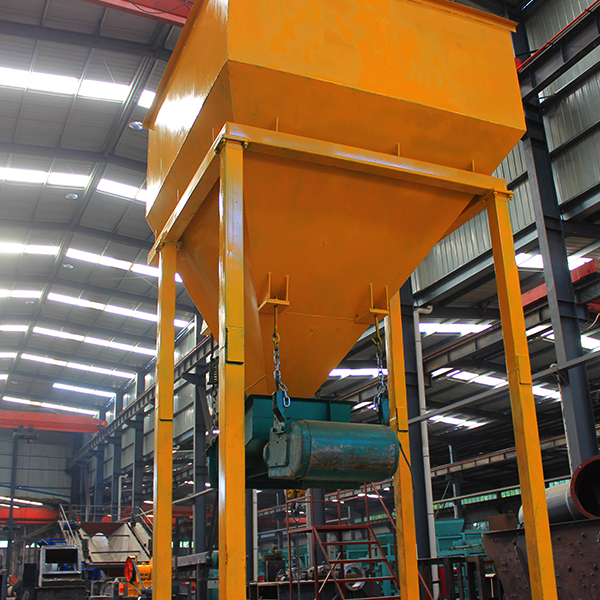

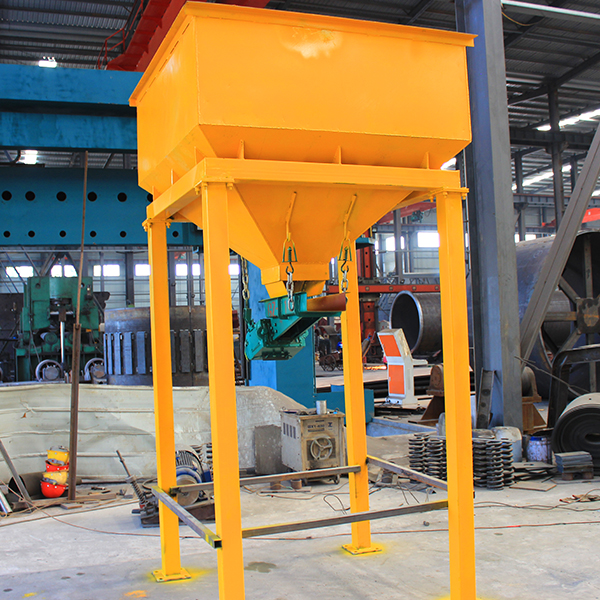

Electromagnetic vibrating feeder is used to feed the materials evenly and quantificationally from the storage bin or other devices to the receiving equipment. It is a necessary equipment to realize flow production and automatization, it has two types: open model and closed model, we can supply the electro-magnet vibrating feeder, hopper, and belt conveyor according to your requirement.
Features
Parameter
| Model | Feeding capacity (t/h) |
Max allowed input size (mm) |
Power (w) |
Voltage (v) |
Current (a) |
Double amplitude (mm) |
Clearance (mm) |
Total weight (kg) |
|---|---|---|---|---|---|---|---|---|
| GZ1 | 5 | 50 | 60 | 220 | 1≤ | 1.75 | 1.9-2.2 | 75 |
| GZ2 | 10 | 60 | 150 | 220 | 2.3≤ | 1.75 | 1.9-2.2 | 155 |
| GZ3 | 25 | 70 | 200 | 220 | 3.8≤ | 1.75 | 1.9-2.2 | 225 |
| GZ4 | 50 | 100 | 450 | 220 | 7≤ | 1.75 | 1.9-2.2 | 460 |
| GZ5 | 100 | 150 | 650 | 220 | 10.6≤ | 1.75 | 1.9-2.2 | 656 |
