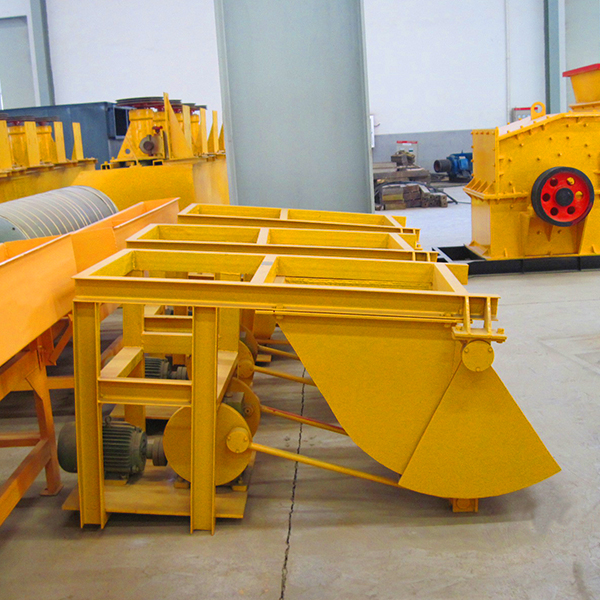

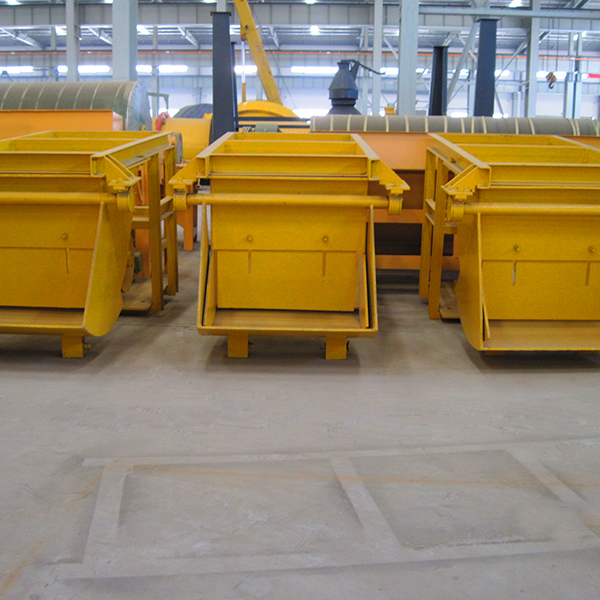

The pendulum feeder is mechanical equipment installed under the storage tank or hopper that realizes continuous and uniform feeding. It transports dry and non-caking materials, such as ore, coal, etc.
SCOPE OF APPLICATION:
Metallurgy, mining, ore dressing, building materials, chemical industry.
Product Description
Pendulum Feeder is an auxiliary device for the transport machinery, suitable for concentrator, smelters, cement plants, placer, machinery casting workshop and other departments in the suspension steel structure, installed in the lower part of the hopper made by continuous feeding. Uniform, quantitative, and continuous ores can be supplied of bulk, granular or powdery materials.
Applied material：Rock gold ore, rock coltan ore, rock tin ore, rock tungsten ore, rock iron ore, rock manganese ore, rock chrome ore, stones, gravel, coal, granite, marble, etc.
Features
1. The equipment is small, simple in structure and easy to install.
2. Non-rotating parts do not need lubrication, and maintenance is convenient.
3. The pendulum feeder adopts the principle of resonance and consumes less power.
Parameter
| Model | Inlet size (LxW)(mm) |
Outlet size (LxW)(mm) |
Eccentric stroke (mm) |
Swinging frequency (n/min) |
Max feed size (mm) |
Feeding capacity (t/h) |
Motor Model |
Motor Power (kw) |
Motor speed (r/min) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| BG300x300 | 300×300 | 300x(30-125) | 0-90 | 46 | 30 | 6.5 | Y802-4 | 0.75 | 1390 | 272 |
| BG400x400 | 400×400 | 400x(50-130) | 0-170 | 45.5 | 35 | 12 | Y90S-4 | 1.1 | 1410 | 558 |
| BG600x600 | 600×600 | 600x(50-150) | 0-157 | 48 | 50 | 40-80 | Y100L-4 | 1.5 | 940 | 613 |
