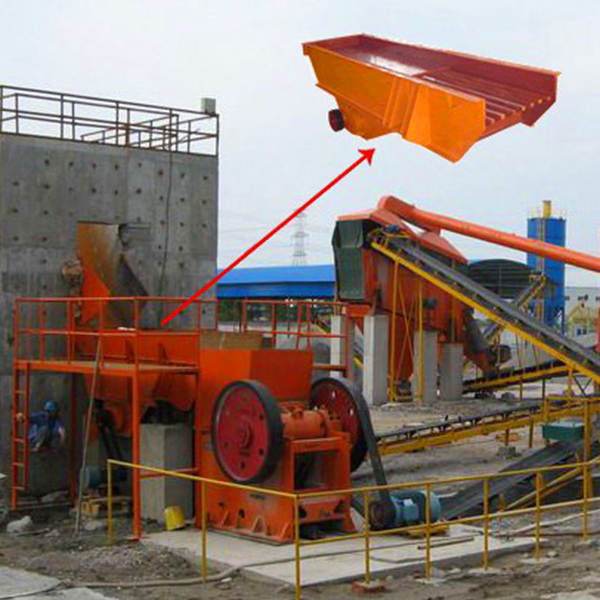

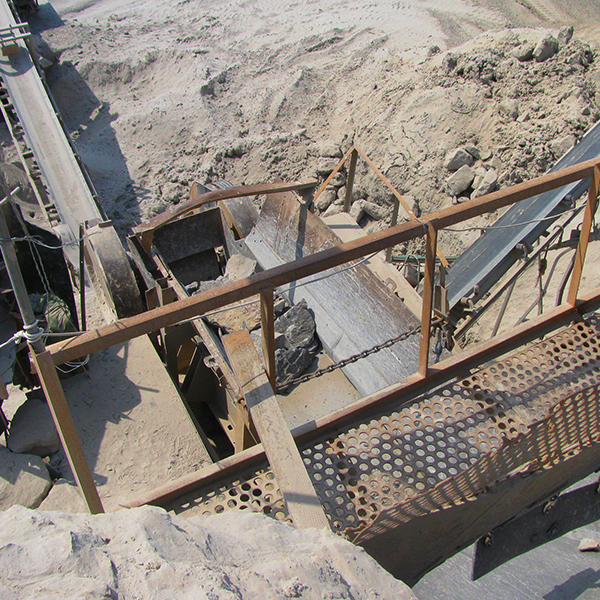

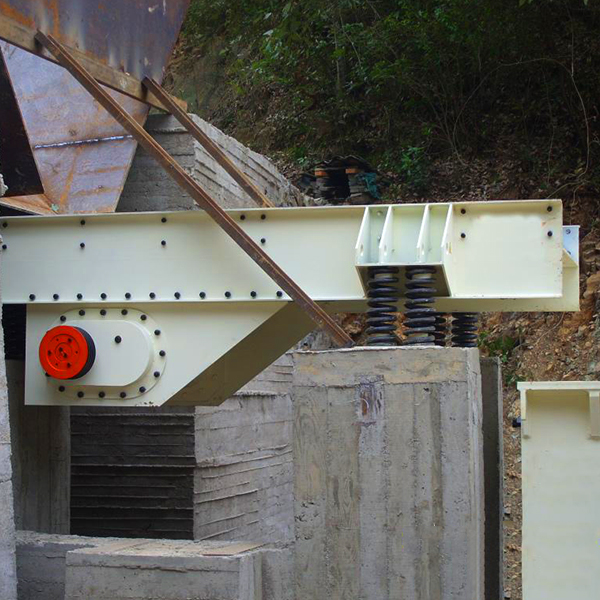

ZSW series vibrating feeder during processing the equipment can send various materials into the crushers in the given time, separating the raw materials primarily. It is widely used in metallurgy, coal ore, construction materials, etc.
SCOPE OF APPLICATION:
Crushing and screening equipment in metallurgy, coal mine, mineral processing, building materials, chemical industry, abrasives, and other industries.
Product Description
The compound crusher can crush large materials with much water content, so it’s the ideal machine to crush high moisture materials. The discharging granularity can be adjusted at will, for it adopts the no-grizzly-bar structure to avoid blocking, which is suitable for crushing materials with much silt content. Materials that can’t be crushed will be discharged from the crusher without causing damage to the machine.
Applied material：Limestone, granite, marble, basalt, copper ore, iron ore, river pebble, shale, lapis, coal, cobblestone, construction waste, etc.
Features

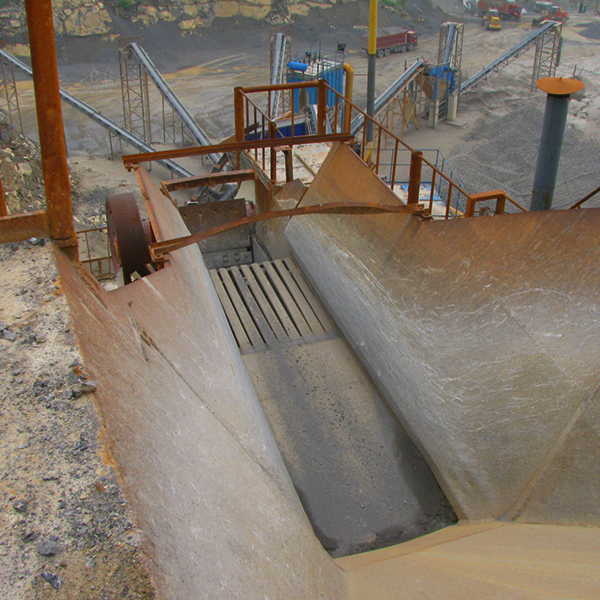

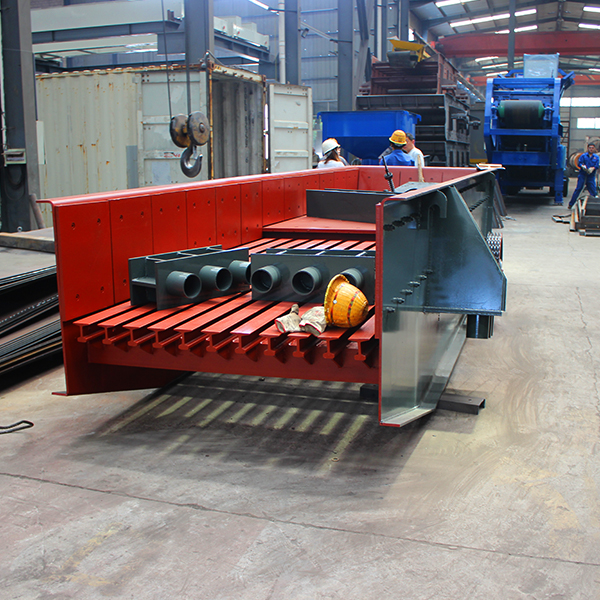

1. The gap between grizzly bars can be adjusted, so it has wide application and makes good prescreening performance.
2. The feeding for the primary crushing can be controlled by adjusting power speed.
3. Stable vibration and low noise make it safe and reliable when start and stop the machine.
4. It is optional to add the extra high for side plate and extra liner. It is optional to change whole plate and steel plate with drilled-holes instead of grizzly bars in the pre-screening part, so it can be used in different working conditions.
Parameter
| Model | Funnel Size (mm) |
Max Feed Size (mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
Overall Dimension (mm) |
|---|---|---|---|---|---|---|
| ZSW-300×90 | 3000×900 | 400 | 80-120 | 705 | 3.9 | 3110x1800x1600 |
| ZSW-380×96 | 3800×960 | 500 | 120-210 | 11 | 4.2 | 3850x1950x1630 |
| ZSW-420×110 | 4200×1100 | 650 | 180-400 | 15 | 4.8 | 4400x2050x1660 |
| ZSW-490×110 | 4900×1100 | 650 | 280-500 | 15-18.5 | 5.6 | 5200x2050x1700 |
| ZSW-490×130 | 4900×1300 | 750 | 300-550 | 22 | 6.7 | 5200x2350x1750 |
| ZSW-600×130 | 6000×1300 | 800 | 400-750 | 30 | 8.2 | 6160x2580x2293 |
| ZSW-600×150 | 6000×1500 | 900 | 500-900 | 37 | 10.3 | 6160×2919 x2293 |
