It can be widely used in the separation of non-ferrous metals, ferrous metals, and non-metallic minerals, and is suitable for roughing and sweeping operations in large and medium-sized flotation plants.
SCOPE OF APPLICATION:
Separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body, and materials of chemical industry.
Product Description

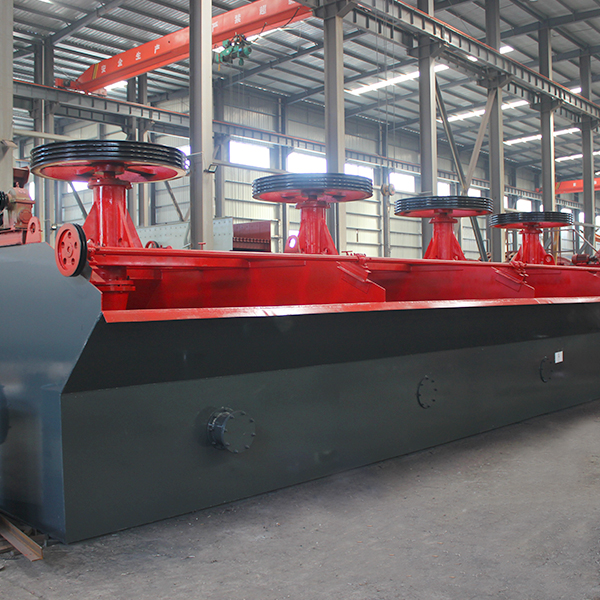

BF type flotation cells is closed structure, which resolve the technical problems of Radial reflux flow and axial slip flow, making generating the high capacity of air absorption by the low impeller rotation speed, up to the aim of energy saving.
Applied material：Copper, gold, zinc, lead, nickel, fluorite, molybdenum ore, slag, feldspar, talc, rutile, and other mineral processing plants; It can also be used for separation of ferrous metals and non-metals.
Features
1. Large air suction volume, low energy consumption.
2. Each tank with air suction, slurry suction, and floatation can form its flotation circuit without any auxiliary equipment.
3. The configuration is easy to change the process.
4. The reasonable slurry circulation minimizes coarse sand sediments.
5. Auto-control device of slurry volume, convenient adjustment.
Parameter
| Model | Volume (m³) |
Cell size (mm) |
Impeller Diameter (mm) |
Capacity (m³/min) |
Motor Power (kw) |
Single Cell Weight (kg) |
|---|---|---|---|---|---|---|
| BF-0.37 | 0.37 | 740×740×750 | 286 | 0.2-0.4 | 1.5/1.1 | 470 |
| BF-0.65 | 0.65 | 850×950×900 | 300 | 0.3-0.7 | 3/1.1 | 932 |
| BF-1.2 | 1.2 | 1050×1150×1100 | 450 | 0.6-1.2 | 5.5/1.1 | 1370 |
| BF-2.0 | 2.0 | 1400×1450×1120 | 500 | 1-2 | 7.5/1.1 | 1750 |
| BF-2.8 | 2.8 | 1650×1650×1150 | 550 | 1.4-3 | 11/1.5 | 2130 |
| BF-4 | 4 | 1900×2000×1200 | 650 | 2-4 | 15/1.5 | 2585 |
| BF-6 | 6 | 2200×2350×1300 | 700 | 3-6 | 18.5/1.5 | 3300 |
| BF-8 | 8 | 2250×2850×1400 | 760 | 4-8 | 30/1.5 | 4130 |
| BF-10 | 10 | 2250×2850×1700 | 760 | 5-10 | 30/1.5 | 4660 |
| BF-16 | 16 | 2850×3800×1700 | 850 | 8-16 | 37/1.5 | 8320 |
| BF-20 | 20 | 2850×3800×2000 | 850 | 10-20 | 37/1.5 | 8670 |
| BF-24 | 24 | 3150×4150×2000 | 920 | 12-24 | 45/1.5 | 8970 |
