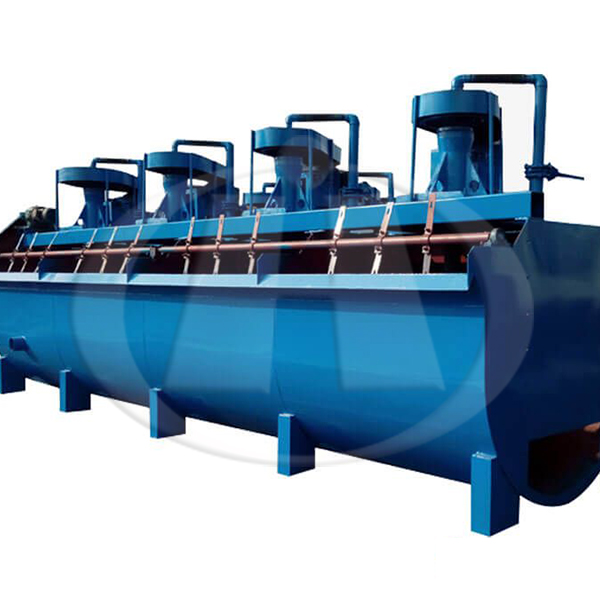

GF flotation machine is a relatively coarse particle flotation machine, which is suitable for medium and small enterprises that select non-ferrous, black, precious metals and non-metallic minerals. Applicable material size is0.074mm of 45-98%, with pulp density <45%.
SCOPE OF APPLICATION:
Ferrous metal ores, precious metal ores, Non-ferrous metal ores, Sulfide minerals, Soluble saline minerals, Non-metallic saline minerals, Non-metallic minerals, and silicate minerals Oxide minerals.
Product Description
GF flotation machine adopts creative forward tank, double side blades of water wheels, draft tube and the false bottom device, structure is simple and easy to configure. GF flotation machine, it can be used as roughing and scavenging.
Applied material：Non-ferrous and ferrous metals, precious metals, and non-metallic minerals such as phosphorite, fluorite, lead-zinc ore, copper ore, gold ore, iron ore, aluminum ore, lead ore, potash feldspar, quartz, etc.
Features
Parameter
| Model | Volume (m) |
Cell Size (mm) |
Motor Power (kw) |
Capacity (m³/min) |
Air Volume (m³/㎡.min) |
Scraper Motor Power (kw) |
Single Cell Weight (kg) |
|---|---|---|---|---|---|---|---|
| GF-0.35 | 0.35 | 700×700×730 | 1.5 | 0.1-0.2 | 1.2 | 0.75 | 470 |
| GF-0.7 | 0.7 | 900×900×900 | 3 | 0.1-0.4 | 1.2 | 1.1 | 932 |
| GF-1.1 | 1.1 | 1100×1100×1000 | 5 | 0.2-0.5 | 1.2 | 1.1 | 1370 |
| GF-2 | 2 | 1400×1400×1150 | 7.5 | 0.3-1.0 | 1.2 | 1.5 | 1750 |
| GF-3 | 3 | 1500×1850×1200 | 11 | 0.5-1.5 | 1.2 | 1.5 | 2230 |
| GF-4 | 4 | 1600×2150×1250 | 15 | 0.5-2.0 | 1.2 | 1.5 | 2585 |
| GF-6 | 6 | 2000×2500×1300 | 22 | 1.0-3.0 | 1.2 | 1.5 | 3300 |
| GF-8 | 8 | 2200×2900×1400 | 30 | 1.0-4.0 | 1.2 | 1.5 | 4130 |
| GF-10 | 10 | 2200×2900×1700 | 30 | 2.0-6.0 | 1.2 | 1.5 | 4500 |
| GF-16 | 16 | 2850×3800×1700 | 45 | 3.0-8.0 | 1.2 | 2.2 | 8320 |
| GF-20 | 20 | 2850×3800×2000 | 45 | 4.0-10.0 | 1.2 | 2.2 | 8670 |
| GF-24 | 24 | 3150×4150×2000 | 55 | 5.0-12.0 | 1.2 | 2.2 | 8970 |
| GF-28 | 28 | 3150×4150×2300 | 55 | 5.0-14.0 | 1.2 | 2.2 | 9480 |
| GF-42 | 42 | 3600×4800×2650 | 75 | 8.0-20.0 | 1.2 | 3 | 19400 |
