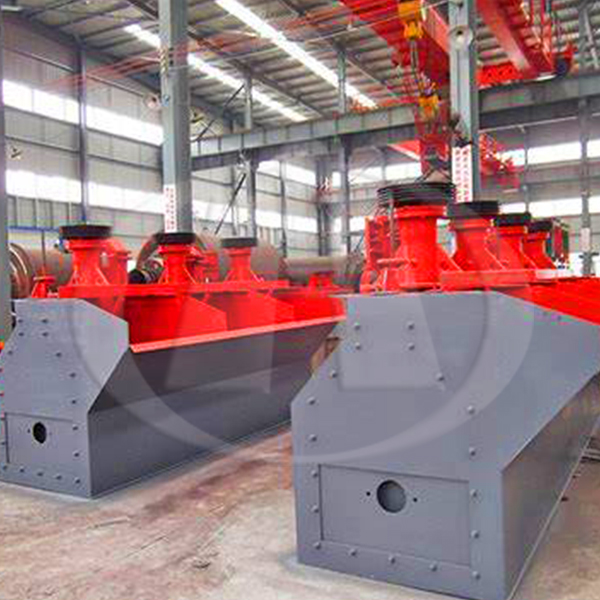

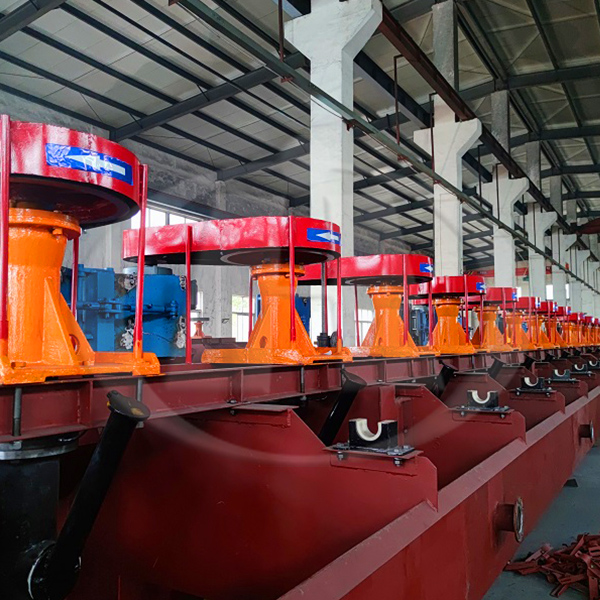

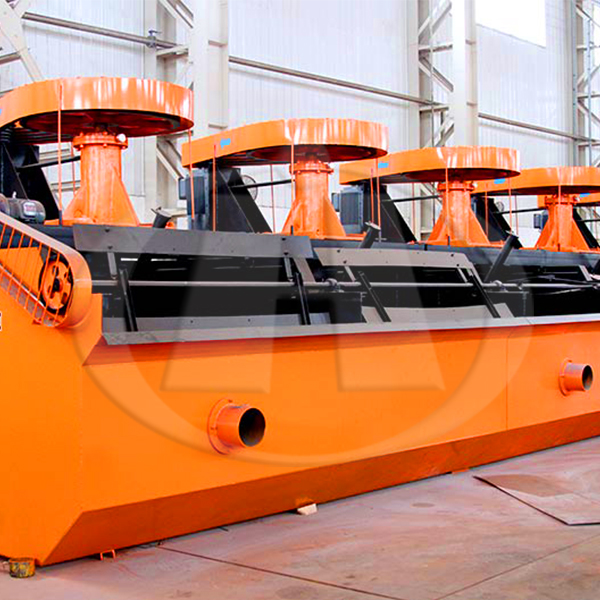

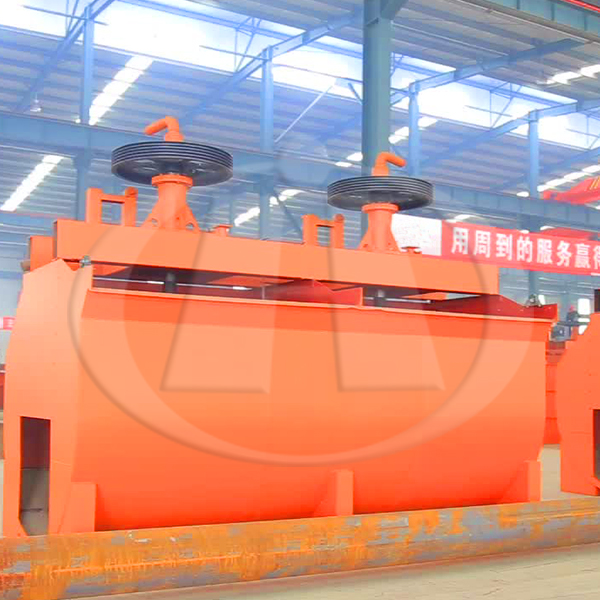

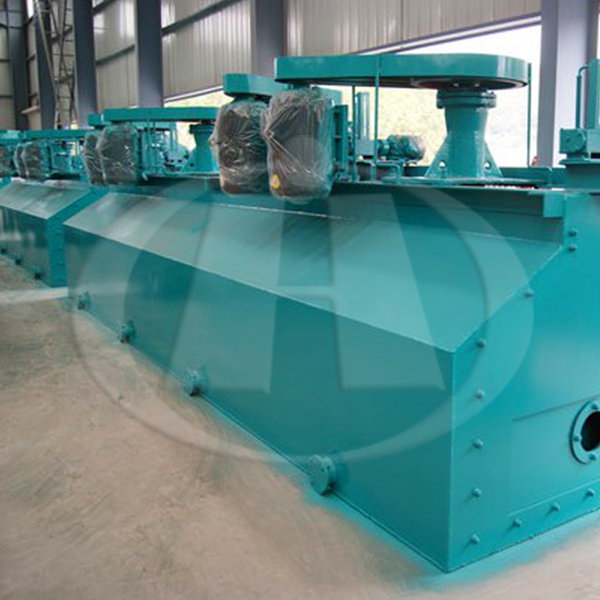

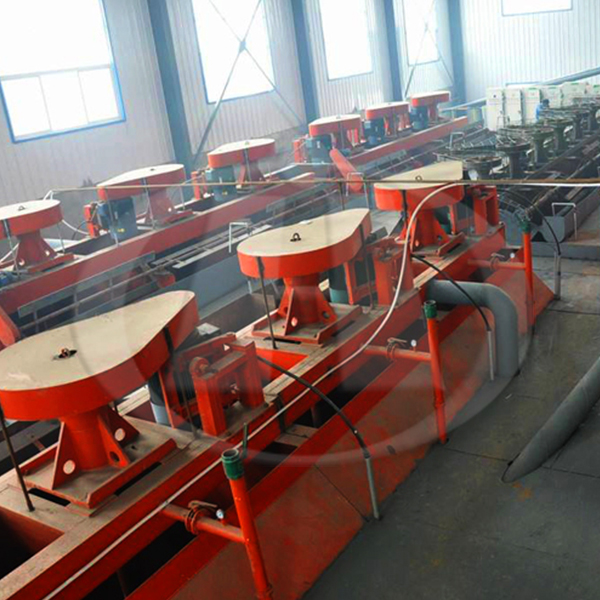

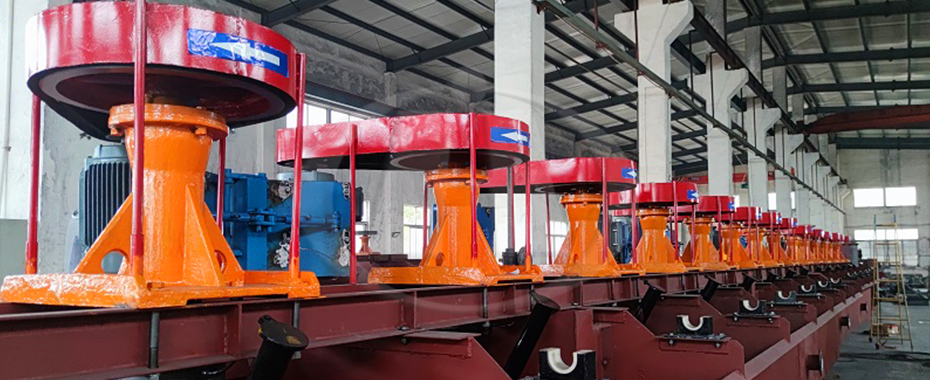

SF flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body, and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation, and flotation, so the useful ore are reclaimed.
SCOPE OF APPLICATION:
Non-ferrous metals, ferrous metals, and non-metallic mineral sorting.
Product Description
SF flotation cell adopts creative forward tank, double side blades of water wheels, draft tube, and the false bottom device. The slurry in tank takes upper and lower circulation according to the fixed flow mode, which is conducive to suspension of coarse particle.
Applied material：Copper, zinc, lead, silver, gold, nickel, molybdenum, non-metal ores and ferrous metal ores, etc.
Features
Parameter
| Model | Effective Volume (m³) |
Capacity (m³/min) |
Motor Power (kw) |
Spindle Speed (r/min) |
Scraper Speed (r/min) |
Scraper Power (kw) |
Cell Size (mm) |
Single Cell Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 352 | 25 | 0.55 | 700×700×750 | 468 |
| SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 900×820×950 | 600 |
| SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100×1100×1100 | 1873 |
| SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1750×1600×1150 | 2538 |
| SF-4 | 4 | 2.0-4.0 | 15 | 220 | 25 | 1.5 | 1850×2050×1200 | 2838 |
| SF-8 | 8 | 4.0-8.0 | 30 | 191 | 25 | 1.5 | 2200×2900×1400 | 4129 |
| SF-10 | 10 | 5.0-10 | 30 | 191 | 25 | 1.5 | 2200×2900×1700 | 4486 |
| SF-20 | 20 | 5.0-20 | 30X2 | 191 | 25 | 1.5X2 | 2850×3800×2000 | 9828 |
