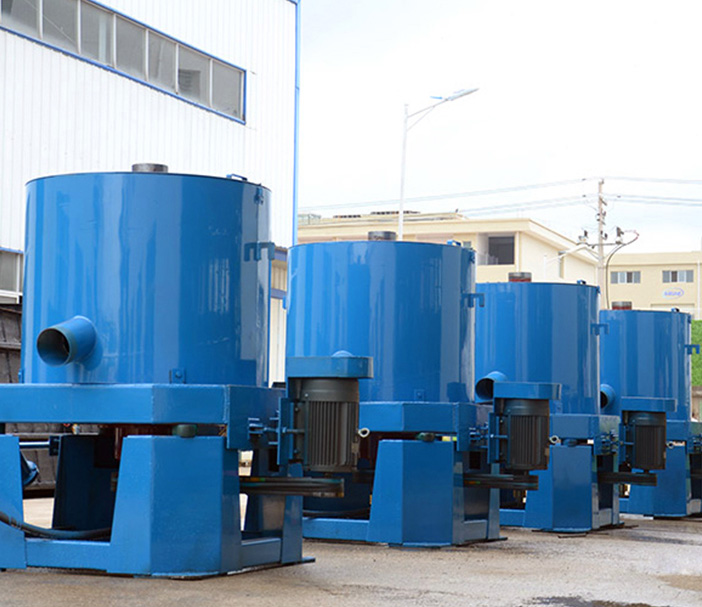

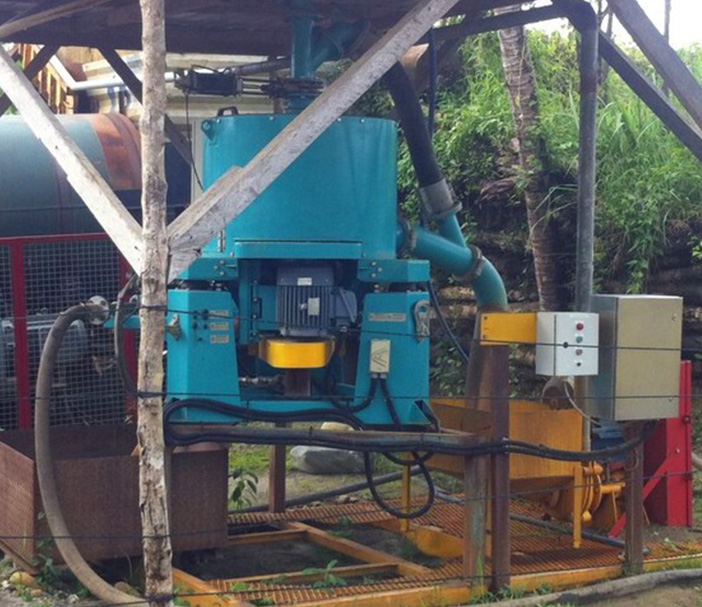

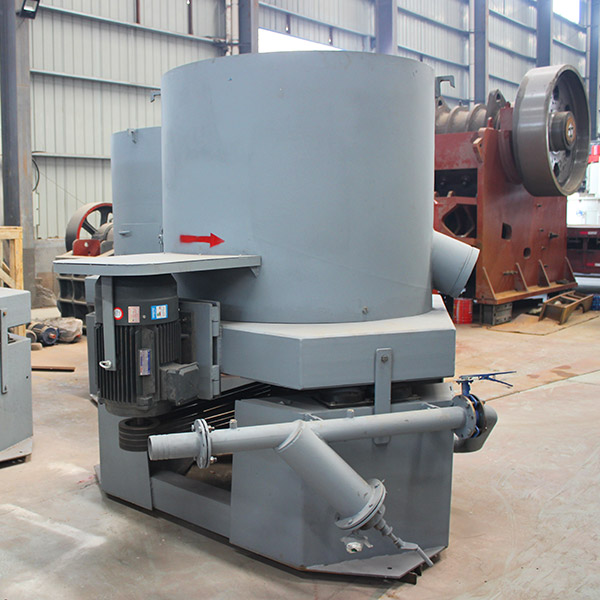

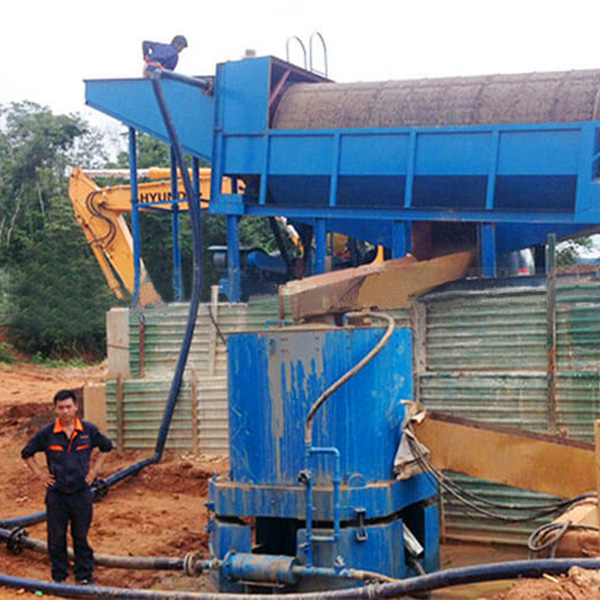

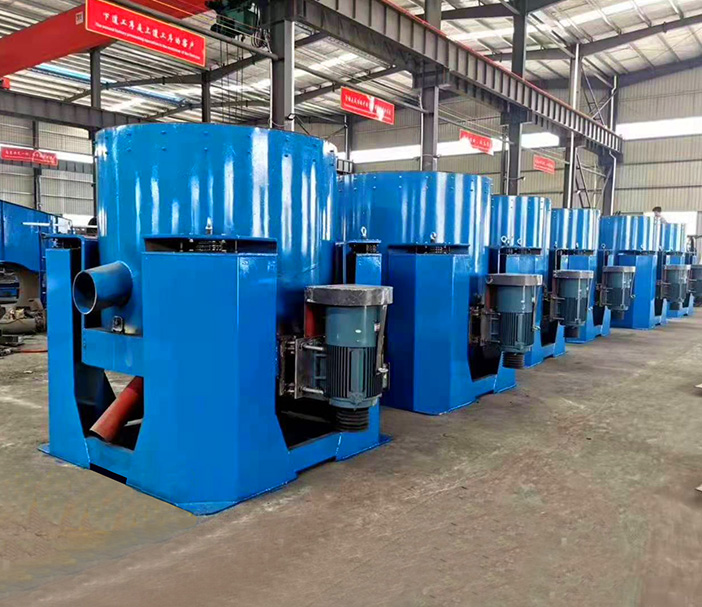

Centrifugal Concentrator is an equipment for gravity separation and creates large centrifugal force through high-speed rotating, which strengthen gravity separation process. The micro fineness minerals can be recovered more effectively.
SCOPE OF APPLICATION:
Centrifugal Concentrator is suitable for the recovery of precious metals and the enrichment of large specific gravity minerals, among which the most widely used is the recovery of rock gold, placer gold and non-ferrous metal associated gold.
Product Description
Centrifugal concentrator is a kind of gravity beneficiation equipment, which generates great centrifugal force when rotating at high speed, strengthens the gravity separation process, and makes fine ore particles more effectively recovered. Experiments show that it is particularly effective for the separation of single gold in vain gold ore. It can also be widely used to recover single gold in other metals.
Applied material：Gold, silver, platinum group, tin, tungsten, lead, tantalum, chromium, titanium, hematite and other ores.
Features
Parameter
| Model | STL30 | STL60 | STL80 | STL100 | STL120 |
|---|---|---|---|---|---|
| Capacity(t/h) | 2-3 | 10-15 | 35-40 | 80-120 | 100-130 |
| Feeding Granularity(mm) | 0-4 | 0-6 | 0-6 | 0-6 | 0-6 |
| Feeding Concentration(%) | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
| Backwash Volume(t/h) | 4-6 | 10-15 | 17-25 | 40-60 | 70-80 |
| Concentrate Output(kg/t) | 10-20 | 30-40 | 60-70 | 70-80 | 100-120 |
| Motor Power(kw) | 1.5 | 7.5 | 15 | 18.5 | 22 |
| Cone Speed(r/min) | 600 | 460 | 400 | 360 | 360 |
| Pressure Water(mpa) | 0.12 | 0.25 | 0.35 | 0.4 | 0.5 |
| Dimensions(mm) | 1180×1140×1250 | 1970×1670×1750 | 2300×1800×2200 | 2500×2000×2400 | 2700×2200×2600 |
| Machine Weight(kg) | 400 | 1300 | 2000 | 2500 | 3000 |
