Shaking Table

We manufacture a complete range of Shaking tables to suit all requirements from small laboratory models through to the large process models. Feed capacities can be accommodated from 25 kg per hour to 5,700 kg per hour and can accommodate a wide range of particle sizes.

SCOPE OF APPLICATION:

The recovery of metallics etc. from free gold ores, refuse in brass foundries, cyanide plants, assay offices, re-melting, and casting works.

Product Description

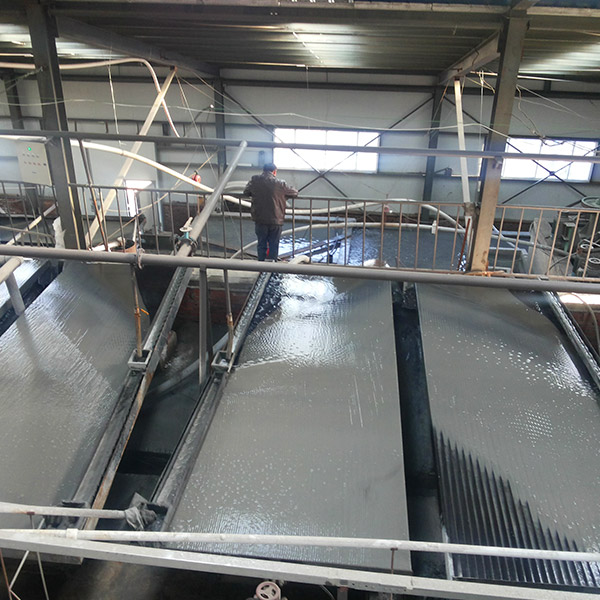

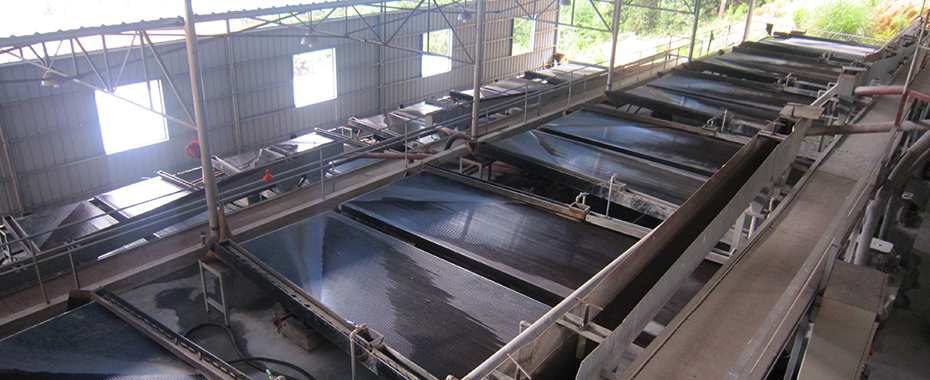

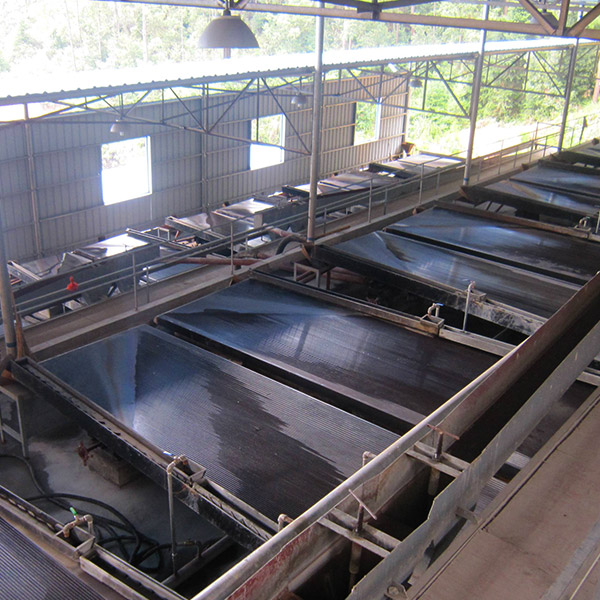

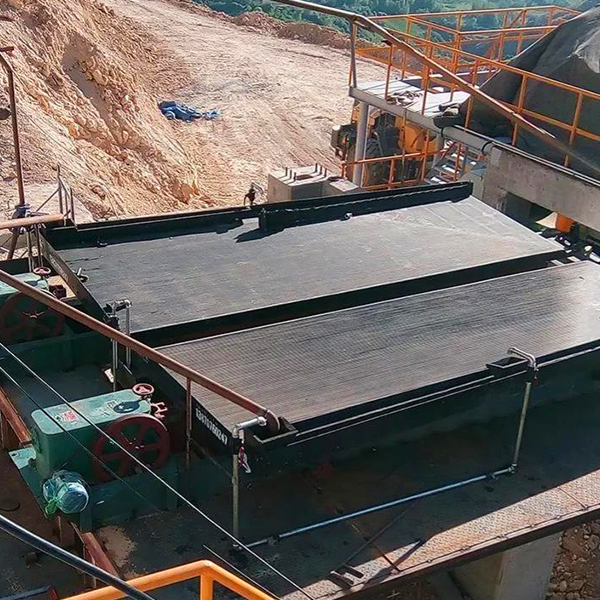

The shaking table is also known as a gold shaking table, gold separation table, or concentrating table. It is a fine gold recovery equipment common in the gold shaker wash plant, alluvial gold mining plant to separate concentrates, medium concentrates, and tailings according to material density and grain size. Shaking table can not only be used as an independent beneficiation machine, but it often works with jig separator machines, centrifugal concentrators, sluice boxes, flotation equipment, magnetic drum separator, spiral classifier, and other ore dressing equipment.

Applied material:Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium, and coal, etc.

Features

  • The large range of transverse slope adjustment(0~10°),adjustable stroke
  • Keep the stably operation when change the transverse slope and stroke
  • Spring is arranged in the case with compact structure
  • Without reagents consumption, little electricity consumption

Parameter

Model Coarse Sand Table Fine Sand Table Slime Table
Table Dimension Length(mm) 4450 4450 4450
Gearing Side Width(mm) 1855 1855 1855
Concentrate Side Width(mm) 1546 1546 1546
Max Feed-In Material Size(mm) 2 0.5 0.15
Feed-In Material Capacity(t/d) 30-60 10-20 15-25
Feed-In Materials Concentration(%) 25-30 20-25 15-25
Stroke(mm) 16-22 11-16 8-16
Frequency(f) 45-48 48-53 50-57
Water For Cleaning Table(t/d) 80-150 30-60 10-17
Transverse Gradient(°) 2.5-4.5 1.5-3.5 1-2
Longitudinal Gradient(%) 1.4 0.92
Table Final Angle(°) 32-42 40 42
Dressing Area(㎡) 7.6 7.6 7.6
Table Length Ratio 2.6 2.6 2.6
Bed End Shapes Rectangle Sawtooth Triangular
Power(kw) 1.1 1.1 1.1
Transmission Mechanism Eccentric Link Mechanism

Service support

  • -Test run the machine 48 hours before delivery.

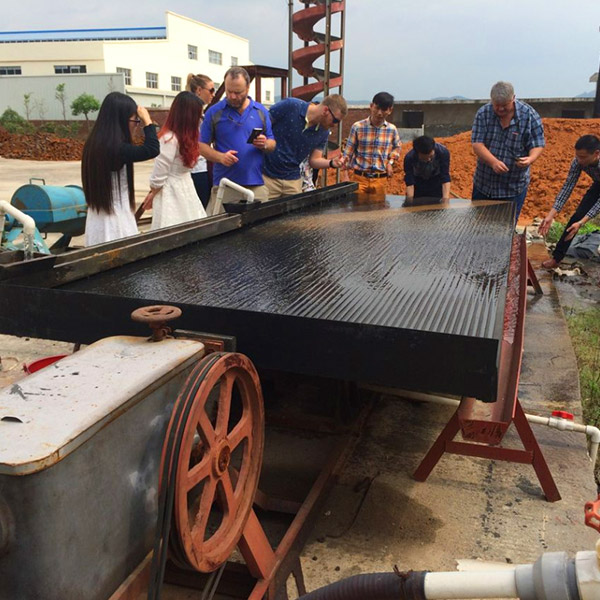

  • -You can take the material to the factory to test the machine.
  • -We will customize the solution according to your needs.
  • Receive after-sales demand

  • Matching engineer

  • Arrived at the scene
