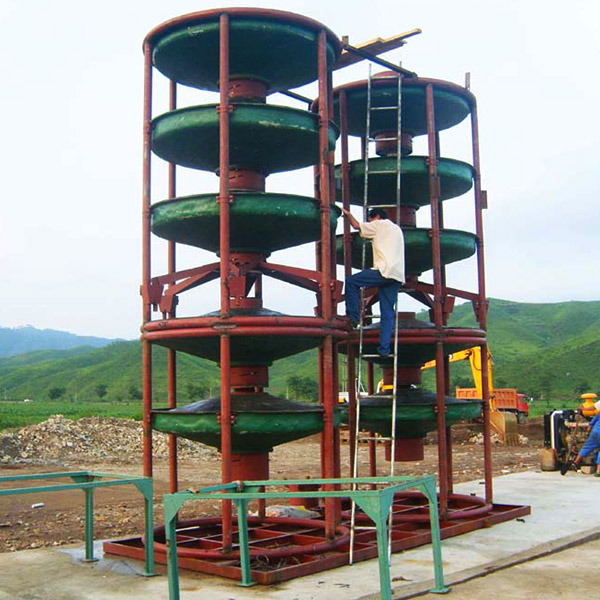

Spiral chute is suitable for treatment of 0.3-0.02mm lode and placer, which is gravity concentrators and separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force, and other forces in the fluid medium. Spiral separators are made of polyurethane lined fiber glass with wearable corundum inner surface.
SCOPE OF APPLICATION:
Iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphorite, tungsten ore, tin ore, strontium as well as antimony ore and other non-ferrous metals, rare metals, and non-metallic mineral bodies.
Product Description

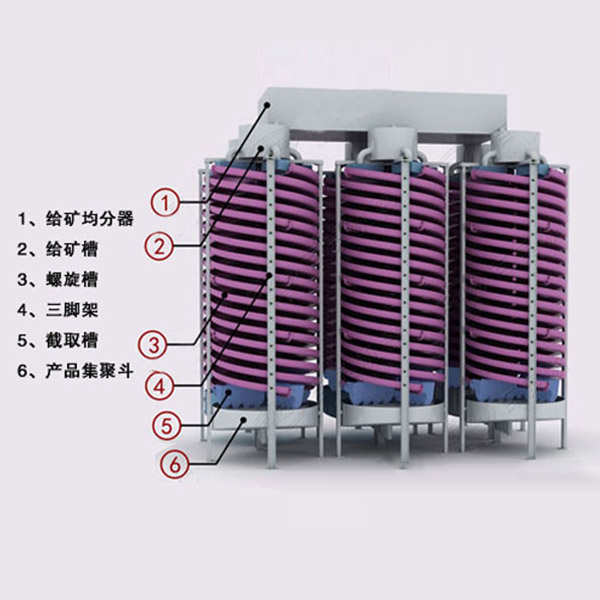

The spiral chute is a high-efficiency re-selection gravity separation equipment that makes use of the inertial centrifugal force generated by the ore pulp in the spiral rotation motion to separate light and heavy minerals. Spiral chute, integrated the characteristics of spiral concentrator, shaking table and centrifugal concentrator, is the best equipment for mining and beneficiation, especially for placer mining on seashores, riversides, sand beaches, and streams.
Applied material: Iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten, tin, tantalum, niobium, etc.
Features
Parameter
| Model | Outer Diameter (mm) |
Inner Diameter (mm) |
Pitch (mm) |
Dia. Span Ratio |
Tilt Angle (°) |
Head Number |
Number Of Turns |
Feeding Size (mm) |
Feeding Coneentration (%) |
Capacity (t/h) |
Area (㎡) |
Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DI2000 | 2000 | 2000 | 1200 | 0.6 | 9 | 2-4 | 3.5 | 0.04-0.4 | 20-40 | 15-45 | 7 | 6.8 |
| DI1500 | 1500 | 1500 | 900 | 0.6 | 9 | 2-4 | 4 | 0.03-0.3 | 20-45 | 10-25 | 5 | 6.1 |
| DI1200 | 1200 | 1200 | 720/540 | 0.6 | 9 | 2-4 | 4-5 | 0.03-0.3 | 30-50 | 4-6 | 2 | 5.23 |
| LI900 | 900 | 900 | 540/360 | 0.4 | 9 | 2-3 | 4-5 | 0.03-0.3 | 30-50 | 2-3 | 1.2 | 4 |
| LI600 | 600 | 600 | 390/360 | 0.4 | 9 | 1-2 | 4-5 | 0.02-0.2 | 30-50 | 0.8-1.2 | 0.5 | 2.6 |
| LI400 | 400 | 400 | 180 | 0.45 | 9 | 1-2 | 4-5 | 0.02-0.2 | 30-50 | 0.5-0.2 | 0.25 | 1.3 |
