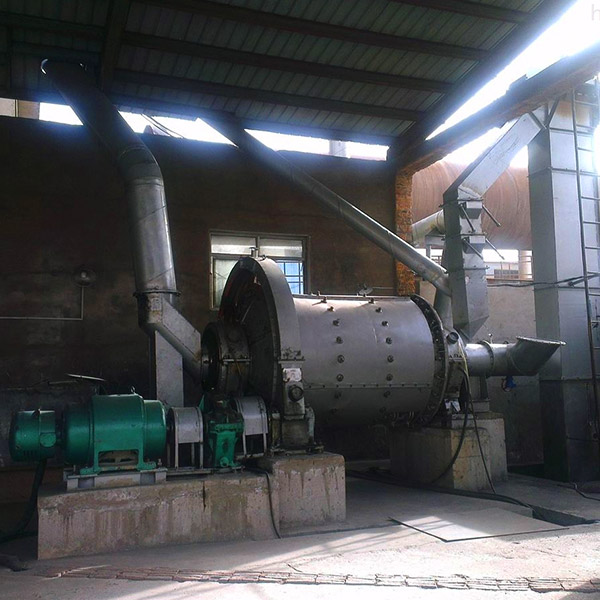

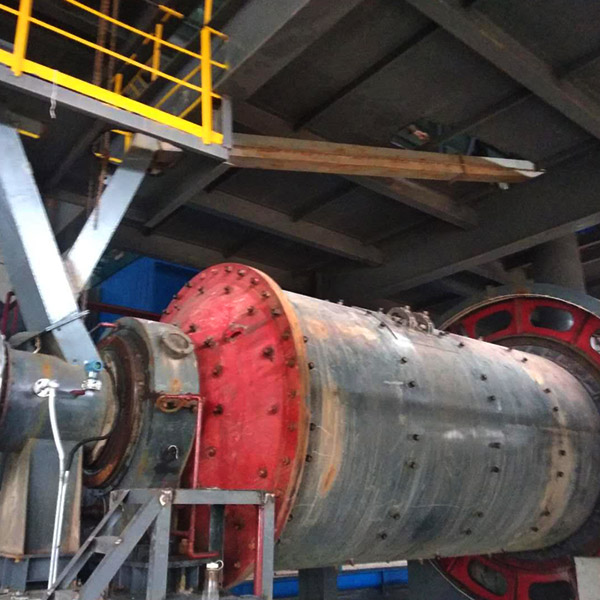

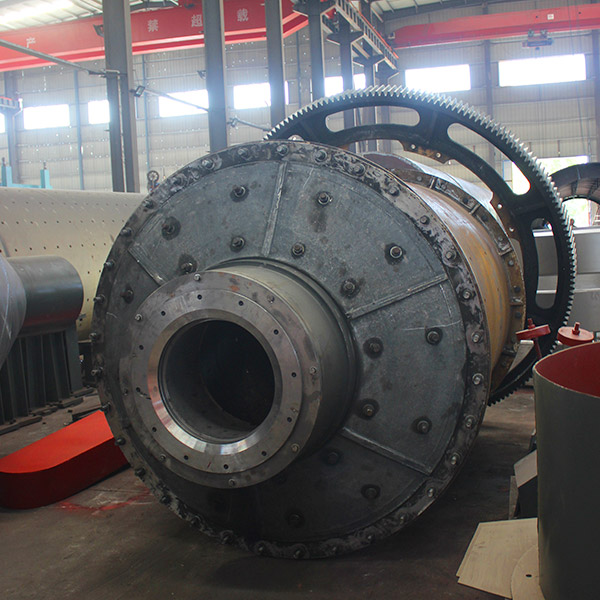

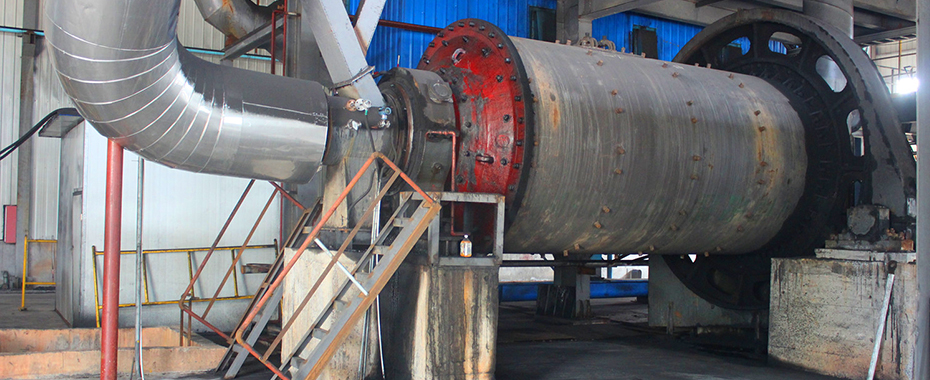

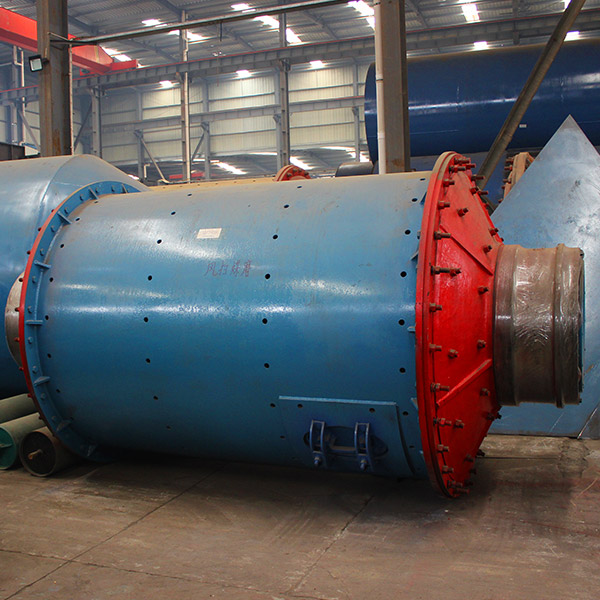

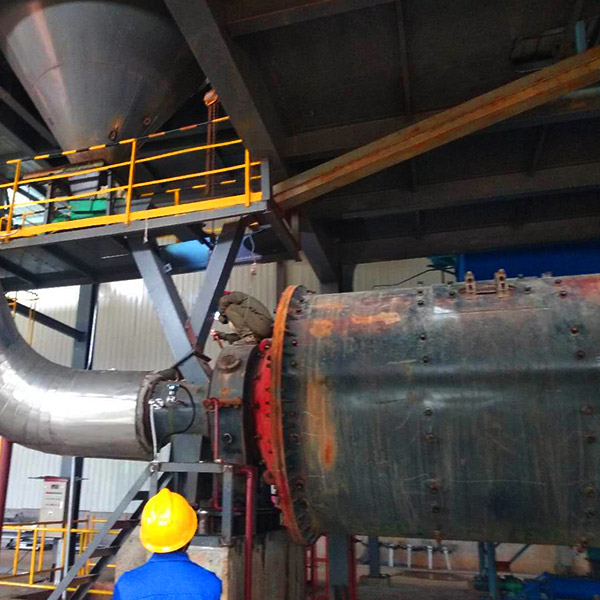

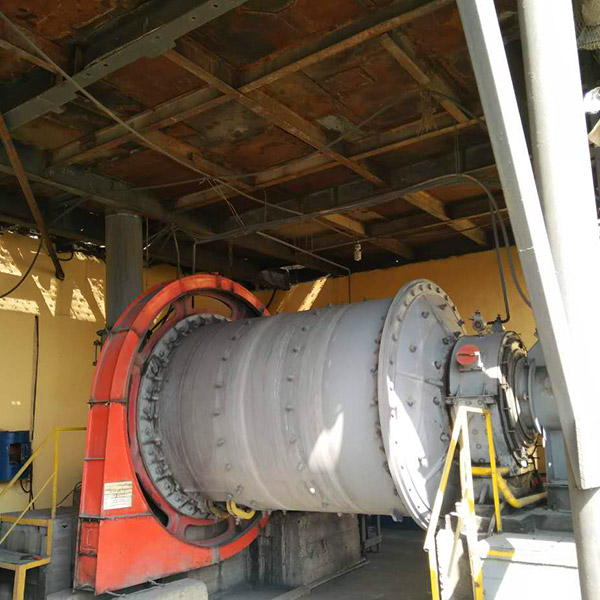

Air-Swept Coal Mill

The air swept coal mill is also called coal ball mill. This coal mill is a kind of ball mill. Steel ball coal mill is one of the auxiliary machines of the thermal power station and an important equipment for the pulverized coal preparation system. This series of coal mills are mainly used to grind coals of various hardness.

SCOPE OF APPLICATION:

Power plants, cement plants, lime plants and other coal grinding enterprises.

Product Description

The air-swept coal mill is the main equipment of the pulverized coal preparation system. It is mainly used to grind coal of various hardness. It is suitable for coal and ore raw material pulverizing systems in thermal power plants, cement, metallurgy,chemical industry, sugar making and other industries. The equipment is mainly composed of a feeding device. a main bearing. a rotating part. a transmission device. a discharging device, a high-voltage starting device and a lubrication system.

Applied material:Coal, coke, lignite, coal gangue, fly ash and others.

Features

  • It has air-swept structure with drying chamber, which allows the coal mill to accept raw material with different moisture.
  • Inside the cylinder there is in sequence stepped lining plate, double stepped lining plate and ripple lining plate, which increase the capacity of the coal mill.
  • The shutter-structured inlet can improve the heat exchange and avoid the material block up the inlet of the coal mill.

Parameter

Model Yield
(t/h)
Mill
Speed
(r/min)
Grinding
Size
(mm)
Grinding
Body Loading
(t)
Effective
Volume
(m³)
Drive
Way
Main
Motor Power
(kw)
Main
Reducer
Equipment
Weight
(t)
Φ1.7×2.5 3-5 24.5 ≤25 7.5 5.1 Edge JR116-6 95KW 380V ZD40-4.5 19.4
Φ2.2×3 5-6 22 ≤25 13 10.4 Edge JR136-8 180KW 380V ZD50-4.87 31.4
Φ2.4×4.75 12 20.4 ≤25 22 19.3 Edge YR400-8 280KW 6KV ZD60 50
Φ2.4×4.5+2 12 20.4 ≤25 22.6 18.3 Edge YRKK500-8 280KW 10KV JDX450 70.1
Φ2.8×5.75+2.25 18-20 18.7 ≤25 38 32.9 Edge YRKK560-8 500KW 10KV MBY630 116.5
Φ2.9×4.1 16 18.8 ≤25 35 27.1 Edge JRQ1510-8 475KW 6KV JDX560 74
Φ3×6.5+2.5 20 18.4 ≤25 46.5 43.3 Edge YRKK560-6/710KW 10KV JDX630 119
Φ3.4×7.5+1.5 30-38 17.5 ≤25 70 64.1 Edge YR800-8/1180 800KW 6KV JDX710 160
Φ3.8×7+2.5 45 16.4 ≤25 80 75 Edge YKK6304-8 1250KW 6KV MBY710 216
