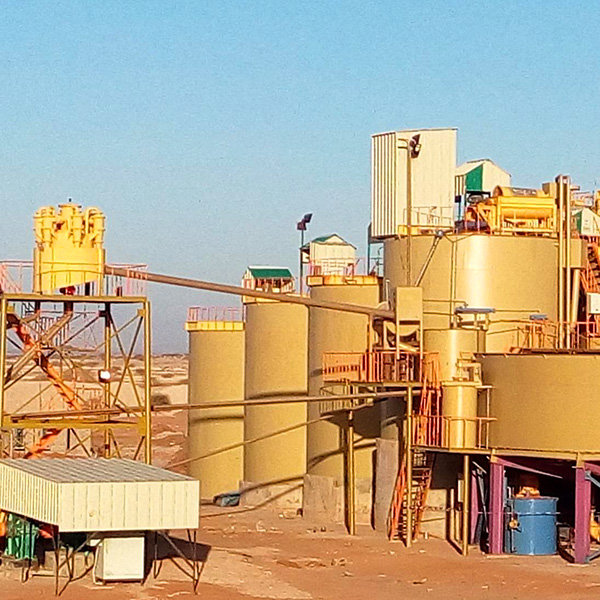

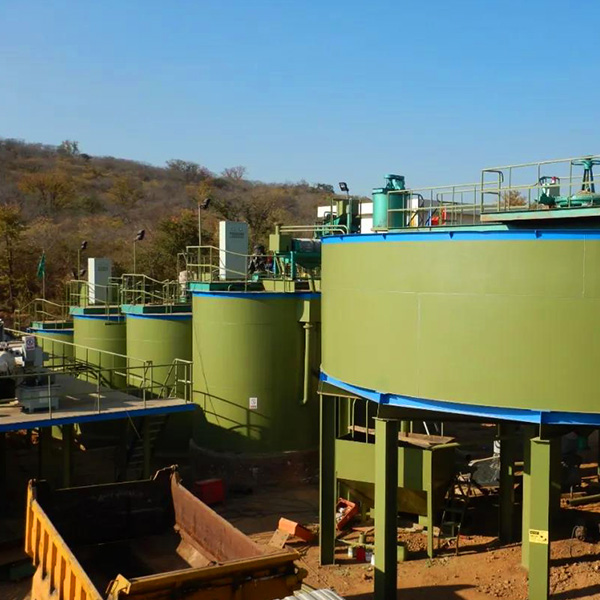

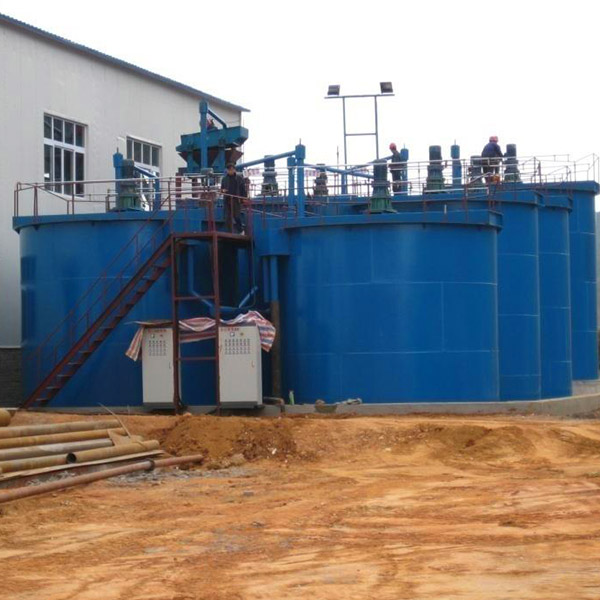

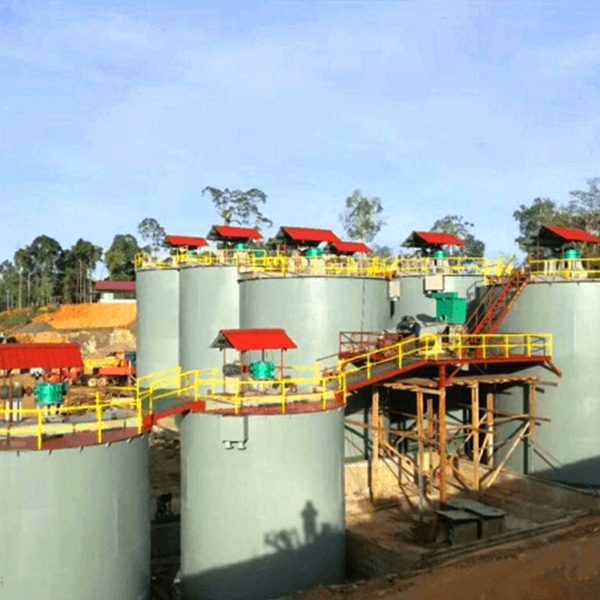

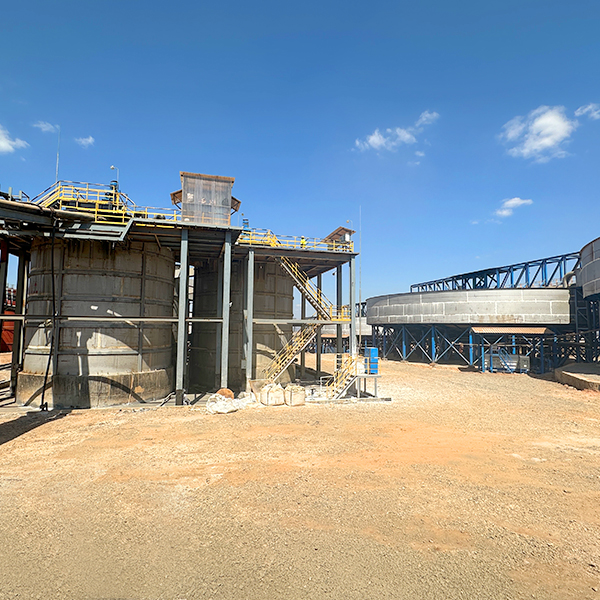

Leaching tank for gold extraction, uniform mixing, low energy consumption; the impeller coated by rubber, long service life; multi points to give gas, uniform inflation.
SCOPE OF APPLICATION:

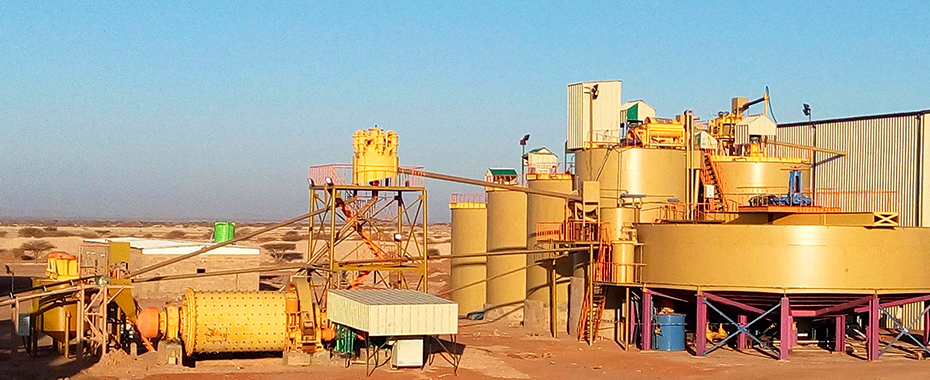

The agitation, leaching and carbon adsorption in the gold cyanide plant。It can also be used for mixing, agitation and leaching operation in industries such as metallurgy, chemical industry, and light industry under corresponding conditions.
Product Description

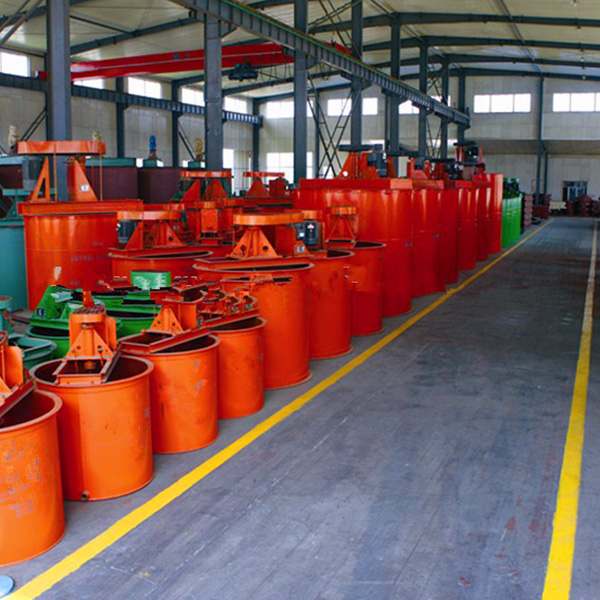

The leaching tank is an important equipment for leaching. The volume of the leaching tank is generally 50-100m². At present, it tends to be large Large-scale tanks of 120~400m² have been used in industry. The leaching tank is divided into a mechanical stirring tank and an air stirring tank. The mechanical stirring tank uses the power to drive the propeller to stir the pulp, and the air stirring tank uses the compressed air to stir the pulp.
Features
Parameter
| Model | Tank Specifications (mm) |
Effective Volume (m³) |
Impeller Speed (r/min) |
Diameter Of Impeller (mm) |
Motor Model |
Motor Power (kw) |
Motor/Reducer Model |
Tank Weight (kg) |
Gross Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SJ2.0×2.5 | 2000×2500 | 7.07 | 52 | 909 | Y100L1-4 | 2.2 | XLD2.2-4-29 | 1609 | 2144 |
| SJ2.5×2.5 | 2500×2500 | 10.8 | 43 | 935 | Y112M-4 | 4 | XLD4-5-35 | 2159 | 2729 |
| SJ2.5×3.15 | 2500×3150 | 13.92 | 52 | 935 | Y100L1-4 | 2.2 | XLD2.2-4-29 | 2398 | 3095 |
| SJ3.0×3.0 | 3000×3000 | 19 | 43 | 1130 | Y112M-4 | 4 | XLD4-5-35 | 3480 | 4583 |
| SJ3x3.15 | 3000×3150 | 20 | 43 | 1130 | Y112M-4 | 4 | XLD4-5-35 | 3480 | 4160.6 |
| SJ3×3.5 | 3000×3500 | 22.97 | 43 | 1130 | Y112M-4 | 4 | XLD4-5-35 | 3211 | 4334.6 |
| SJ3.15×3.55 | 3150×3550 | 25.73 | 43 | 1260 | Y112M-4 | 4 | XLD4-5-35 | 3433.5 | 4322.8 |
| SJ3.5×3.5 | 3500×3500 | 31.3 | 52 | 1310 | Y132S-4 | 5.5 | XLD5.5-5-29 | 3480 | 5025 |
| SJ3.5×4 | 3500×4000 | 35.6 | 52 | 1310 | Y132S-4 | 5.5 | XLD5.5-5-29 | 4230 | 5429 |
| SJ3.55×4 | 3550×4000 | 36.8 | 43 | 1310 | Y112M-4 | 4 | XLD4-5-35 | 4260 | 5025 |
| SJ3.7×4.2 | 3700×4200 | 42 | 42 | 1310 | Y112M-4 | 4 | XLD4-5-43 | 5266 | 6153 |
| SJ4.0×4.5 | 4000×4500 | 52.78 | 35 | 1750 | Y132M-4 | 7.5 | XLD7.5-7-43 | 6397 | 7569 |
| SJ4.0×6 | 4000×6000 | 71 | 33 | 1750 | Y160M-4 | 11 | GRF137-44.65 | 7681 | 9200 |
| SJ4.5×5.0 | 4500×5000 | 74.75 | 35 | 1750 | Y132M-4 | 7.5 | XLD7.5-7-43 | 8614 | 10864 |
| SJ5.0×5.6 | 5000×5600 | 104.5 | 31 | 2046 | Y160M-4 | 11 | XLD11-8-47 | 8740 | 14291 |
| SJ5.5×6.0 | 5500×6000 | 135.42 | 31 | 2100 | Y160M-4 | 11 | XLD11-8-47 | 12467 | 18745 |
| SJ6.5×7.0 | 6500×7000 | 215 | 21 | 2400 | Y180L-4 | 22 | GRF147-70.87 | 17890 | 25978 |
| SJ7.0×7.5 | 7000×7500 | 269 | 21 | 2400 | Y200L2-6 | 22 | XLD22-10-47 | 20505 | 29030 |
| SJ7.5×8.0 | 7500×8000 | 331 | 23 | 2900 | Y200L2-6 | 22 | BLD7-43-22L | 22552 | 32796 |
| SJ8.0×8.5 | 8000×8500 | 402 | 18.5 | 3200 | Y250M-8 | 30 | TPS315-3F | 30559.5 | 42467.3 |
| SJ8.5×9.0 | 8500×9000 | 480 | 18.5 | 3300 | Y250M-8 | 30 | TPS315-3F | 34130 | 46623 |
| SJ10.5×11.0 | 10500×11000 | 900 | 13.28 | 4400 | Y315S-8 | 55 | Y315S-8 | 56888 | 72647 |
| SJ11.5×12.0 | 11500×12000 | 1190 | 12.1 | 4600 | Y315M-8 | 75 | Y315M-8 | 67669 | 95669 |
