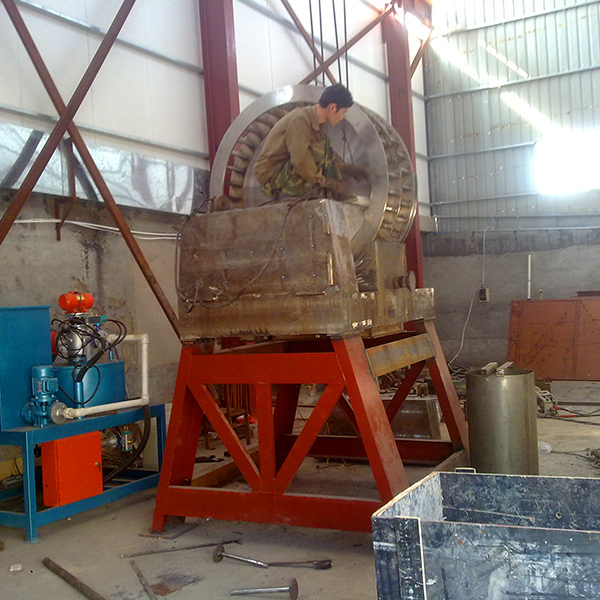

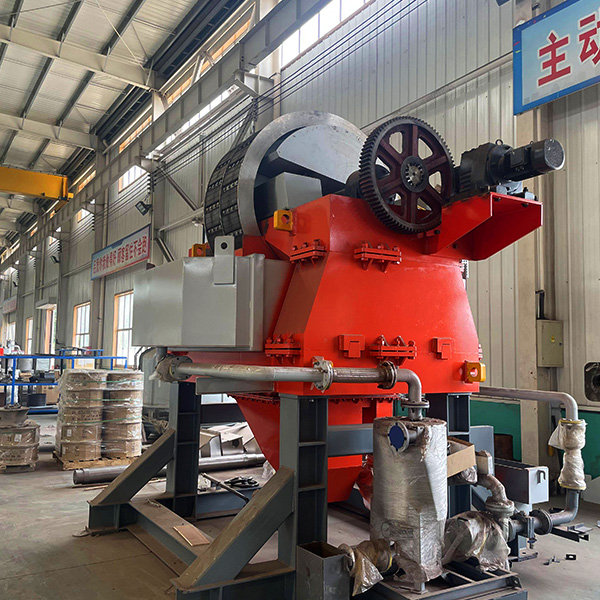

High Gradient Magnetic Separator

The high-gradient strong magnetic separator is a swivel vertical rotary magnetic separator, which is suitable for the beneficiation of weakly magnetic minerals, iron removal and purification of non-metallic ores. Such as: hematite, limonite, siderite, ilmenite, chromite, wolframite, tantalum niobium, red mud, etc. iron removal and purification of non-metallic minerals. For example: quartz, feldspar, nepheline, fluorite, sillimanite, spodumene, kaolin, etc. The high gradient magnetic separator is suitable for wet magnetic separation of magnetite, pyrrhotite, roasted ore, ilmenite, and other materials with a particle size of less than 3mm, and is also used for iron removal of coal, non-metallic ores, building materials and other materials.

Applied material: Oxidized iron ore, titanic iron ore, hematite, limonite, siderite, ilmenite, chromite, manganese ore, wolframite, tantalum-niobium ores etc.

• Low voltage, high current and low current density. Internal water cooling and double circulation cooling mode stable magnetic field. Equipment operation rate is up to 98%;
• Optimized magnetic system design, optimal arrangement and combination of magnetic matrix, background field intensity up to 1.8T. vertical rotation, reverse flushing achieve magnetic matrix is not easy to block;
• Pulsation mechanism design could improve the separation efficiency;Wide separation range: upper limit:6mm, lower limit :2~10μm;
• 17 series of products with more than 70 specifications and models, and capacity of a single unit is from 0.01 to 480t/h;
• Equipped with coil pipeline cleaning system, easy for coil daily maintenance. coil designed life is up to 20 years.
