Dewatering screen is mainly used for dewatering, desliming and demineralization. Therefore, it is also called sand dewatering screen, mining dewatering screen, slime dewatering screen, tailings dewatering screen, high frequency dewatering screen, etc.
SCOPE OF APPLICATION:

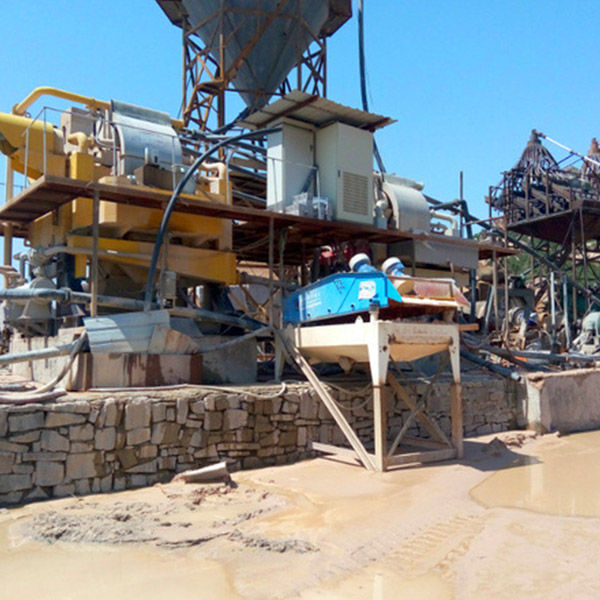

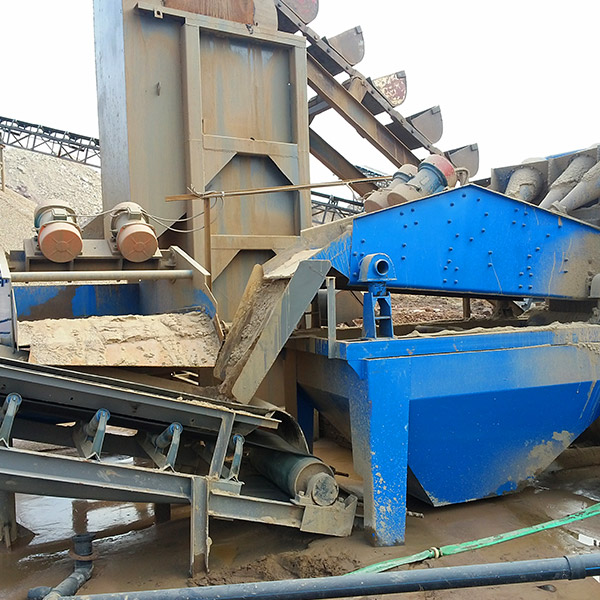

Sand washing in sand and gravel plant, coal slurry recovery in the coal preparation plant, dry discharge of tailings in the mineral processing plant, etc.
Product Description
Dewatering screen is mainly used for dewatering, desliming, and disintermediation, and can be used for dry drainage of tailings, sand washing, slime dewatering, fine sand reclaimer, soil repair, slurry treatment, sewage treatment and so on. Therefore, it is also called sand dewatering screen, mining dewatering screen, slime dewatering screen, tailings dewatering screen, high-frequency dewatering screen and so on.
Applied Material：Sand, gravel, crushed aggregates, frac sand, industrial sands, mineral sands, hard rock, precious metals ore, coal, iron ore, salt, and other granular materials.
Features
Parameter
| Model | Screen Area (㎡) |
Screen Material | Power (kw) |
Feeding Size (mm) |
Production Capacity (t/h) |
Dimensions (m) |
|---|---|---|---|---|---|---|
| TS0820 | 1.6 | Polyurethane | 0.75×2 | ≤10 | 5-10 | 2.3×1.1×0.8 |
| TS1020 | 2 | 1.1×2 | ≤20 | 15-30 | 2.3×1.5×0.8 | |
| TS1225 | 3 | 2.2×2 | ≤20 | 40-60 | 2.8×1.6×1.0 | |
| TS1530 | 4.5 | 3.0×2 | ≤20 | 60-100 | 3.5×2.0×1.2 | |
| TS1836 | 6.48 | 3.7×2 | ≤20 | 80-150 | 4.0×2.4×2.3 | |
| TS1845 | 8.1 | 11×2 | ≤20 | 100-180 | 5.1×2.4×2.3 | |
| TS2050 | 10 | 15×2 | ≤20 | 150-220 | 5.6×2.6×2.4 | |
| TS2060 | 12 | 15×2 | ≤20 | 200-260 | 6.6×2.6×2.4 | |
| TS2260 | 13.2 | 18.5×2 | ≤20 | 220-300 | 6.6×2.8×2.4 | |
| TS2460 | 14.4 | 18.5×2 | ≤20 | 250-350 | 6.6×3.0×2.5 |
