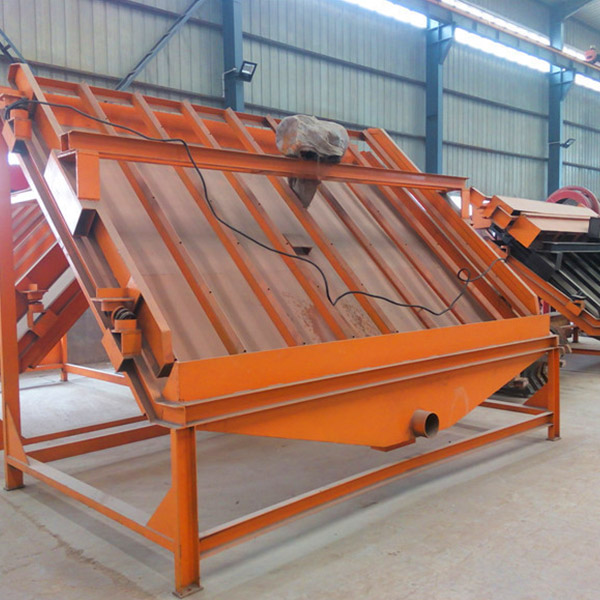

High Frequency Screen

The high-frequency screen is composed of vibration exciter, pulp distributor, screen frame¡ suspension spring and screen mesh. High efficiency, small amplitude, and high screening frequency.

SCOPE OF APPLICATION:

High-frequency screens are widely used in dry and wet screening, grading and dehydration of various materials in ore dressing, coal preparation, chemical industry, brick making, food, pharmaceutical, alkali making, chemical fertilizer, paper making and other industries.

Product Description

High-frequency Screen is an efficient equipment which can classify ultrafine mineral, it has following advantages: high efficiency, high producing ability, low energy cost, it can efficiently prevent excessively grinding, it can greatly prevent the excessively grinding of useful minerals, and improve the recycling rate of mineral processing, so it is widely used to iron mine, tin mine, tungsten mine plants and so on.

Applied material:Iron ore, fly ash, slag, tin, tungsten, tantalum, niobium sand, etc.

Features

  • Iron ore, limonite: Uses the high frequency vibration fine screen to use in the ore concentrate graduation, under the same ore concentrate personal status premise, the ore concentrate average granularity increases thickly, but causes the ore concentrate to filter the condition improvement, may cause to filter the cake moisture content to reduce 0.5%-1%.
  • Tungsten, tin, tantalum, niobium, finely quarry: Uses the high frequency vibration fine screen to replace the spiral sorting machine, the cyclone graduation, or with spiral sorting machine, cyclone combination graduation, with grinding machine close, has enhanced the dressing efficiency, the returns-ratio may enhance 10%-15%.
  • Quartz sand, long quarry: Uses in the stick rubbing-the screening flow, but stably produces the certified product.
  • The metal power system takes: Produce -38mu m between -351μm(400item to 40 item)the metal powder.

Parameter

Model Capacity
(m³/h)
Power
(kw)
GPS-4 15-25 0.72
GPS-5 20-30 1.1
GPS-6 24-36 1.5
GPS-8 32-48 2.2

Service support

  • -Test run the machine 48 hours before delivery.
  • -You can take the material to the factory to test the machine.
  • -We will customize the solution according to your needs.
  • Receive after-sales demand

  • Matching engineer

  • Arrived at the scene
