Mine mixing tanks are employed throughout the world in mining and refining projects. Advanced impeller technology has solved problems encountered during gold leaching, carbon-in-pulp adsorption, biological leaching, flotation, conditioning, and attrition scrubbing, and many more resulting in high quality mixing equipment for all industries and applications.
SCOPE OF APPLICATION:
Mining, chemical industry, building materials, slurry mixing and cyanide plant, sewage treatment plant.
Product Description
The mine mixing tank is used for pulp stirring before flotation process, so that the pulp and medicament intensive mix, creating the condition for the mine selection working.

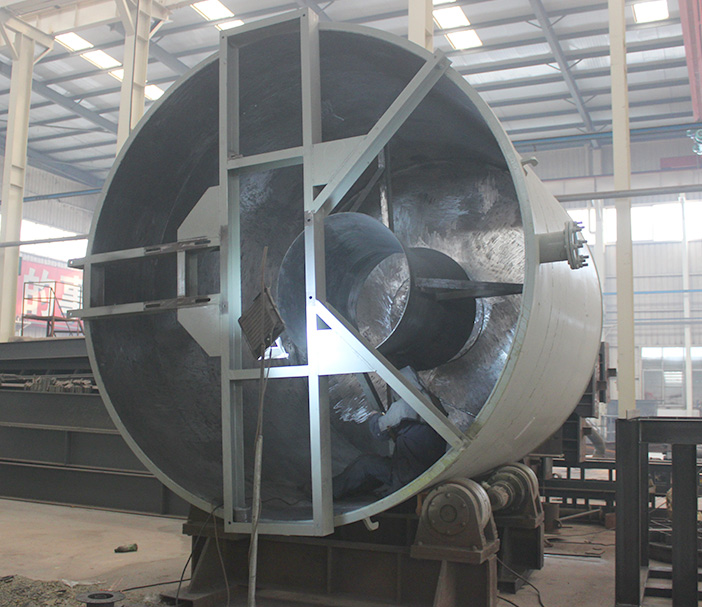

(1) The diameter of the impeller is increased, and the linear speed is increased, which increases the stirring capacity of pulp and medicine. (2) The impeller is designed as an umbrella-shaped impeller, which increases the stirring capacity of pulp and medicine and strengthens the circulation capacity. (3) There is a guide body in the tank, the impeller is in the guide body, and the mixing capacity is increased, so that the pulp and medicine can enter it, and the circulation capacity is further strengthened. (4) The umbrella shaped impeller has a downward pressure during the operation, which strengthens the Suction capacity of the pulp and the circulation capacity of the pulp and the medicine. (5) The lower part of the guide body is provided with a jet body, which the pulp and medicine enter, and the circulation capacity is further strengthened. (6) Sufficient stirring and circulation of ore pulp and medicine can make the mineral surface fully medicated, which is beneficial to flotation.
Applied materali：Gold, copper ore and other minerals’ flotation process plant, leaching process plant, CIP process plant, etc.
Features
Parameter
| Model | Inner Dimensions | Efficient Volume (m³) |
Agitator | Motor | Weight (kg) |
|||
|---|---|---|---|---|---|---|---|---|
| Diameter (mm) |
Depth (mm) |
Diameter (mm) |
Speed (r/min) |
Model | Power (kw) |
|||
| XB-750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 228 |
| XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 436 |
| XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 765 |
| XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1083 |
| XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 1671 |
| XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
| XB-3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 4613 |
| XB-3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 | 7110 |
| GBJ-1000 | 1000 | 1000 | 0.58 | 350 | 550 | Y132M-6 | 4 | 790 |
| GBJ-1250 | 1250 | 1250 | 1.15 | 240 | 350 | Y100L2-4 | 3 | 1110 |
| GBJ-1500 | 1500 | 1500 | 2.2 | 420 | 320 | Y132M2-6 | 5.5 | 2210 |
| GBJ-2000 | 2000 | 2000 | 5.6 | 560 | 240 | Y160M-6 | 7.5 | 3110 |
| GBJ-2500 | 2500 | 2500 | 9.2 | 560 | 180 | Y200L-8 | 15 | 4950 |
| GBJ-3000 | 3000 | 3000 | 19.1 | 700 | 180 | Y225S-8 | 18.5 | 6500 |
| GBJ-4000 | 4000 | 4000 | 45 | 1000 | 153 | Y250M-8 | 37 | 9560 |
