Hongji high-rate sludge thickeners are the result of many years of experience in solid-liquid separation in a wide range of industries such as mining, chemical, metallurgical, water treatment and many others. Our commitment to Research & Development has allowed us to propose innovative solutions to optimize performance and reduce plant and operating costs.
SCOPE OF APPLICATION:
Quarrying & recycling mining & metals, metallurgy, chemical, coal, non-metal ore dressing, environmental protection, and other industries.
Product Description

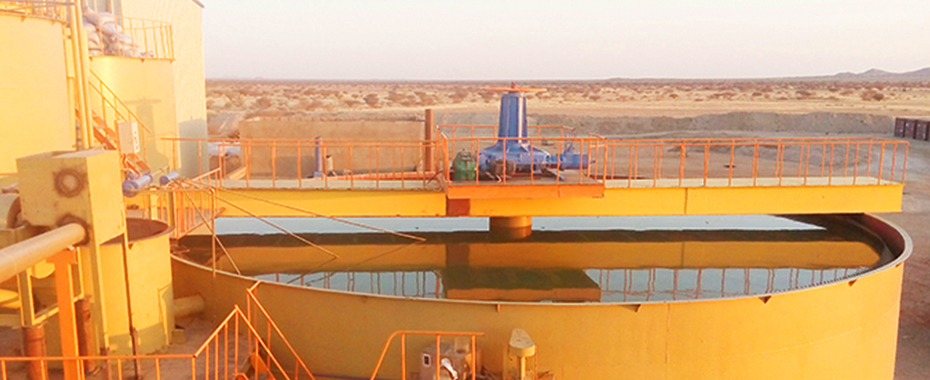

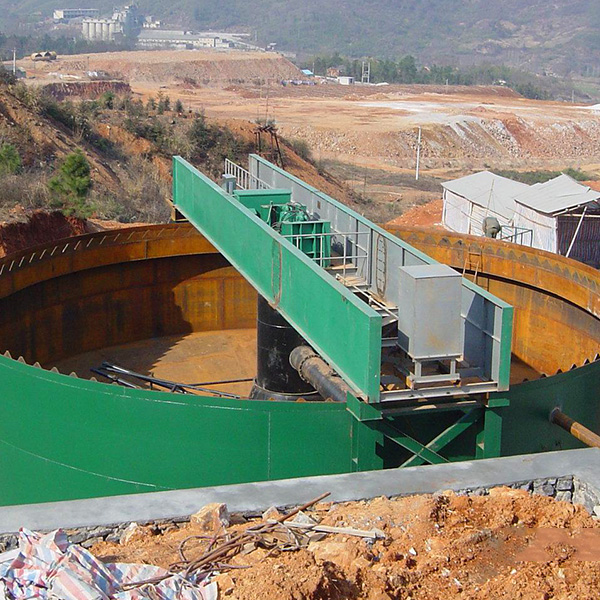

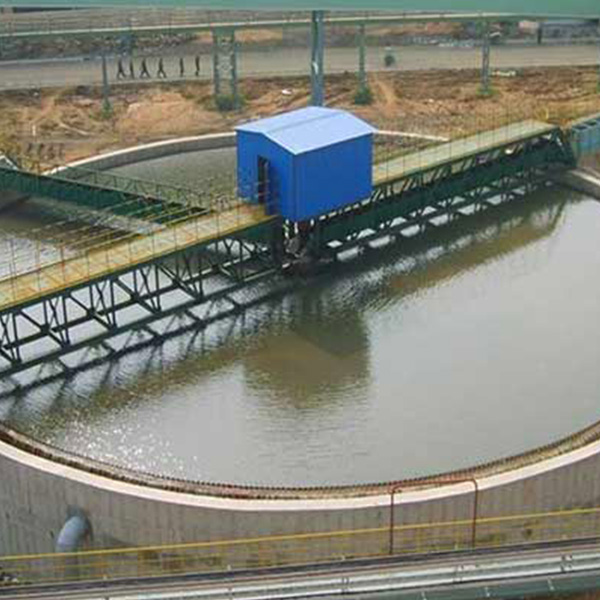

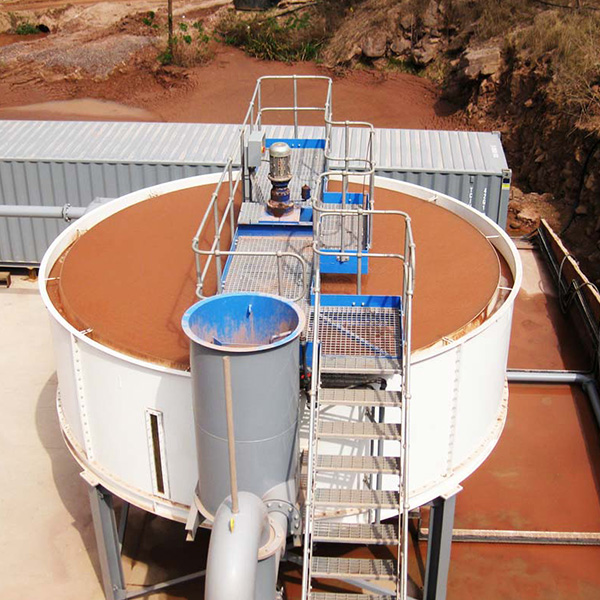

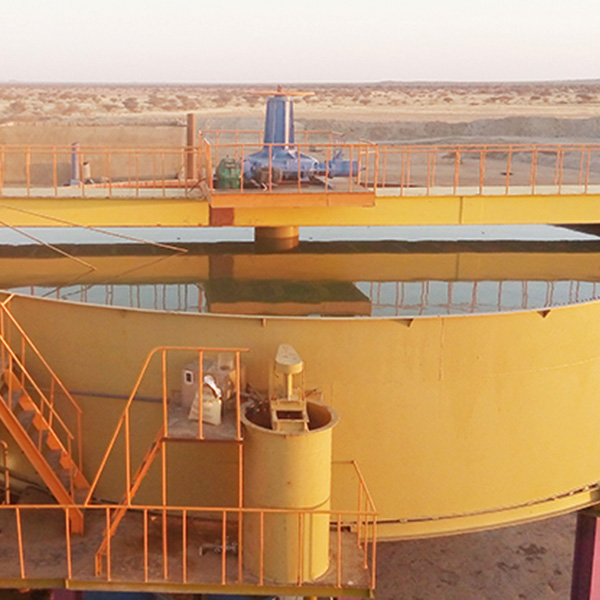

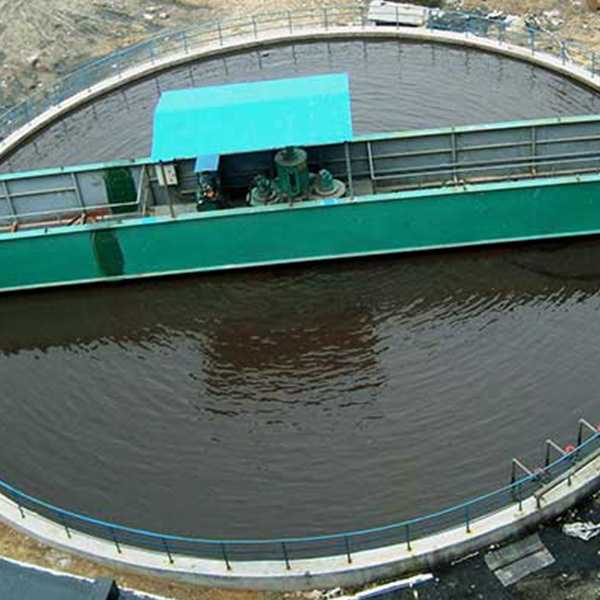

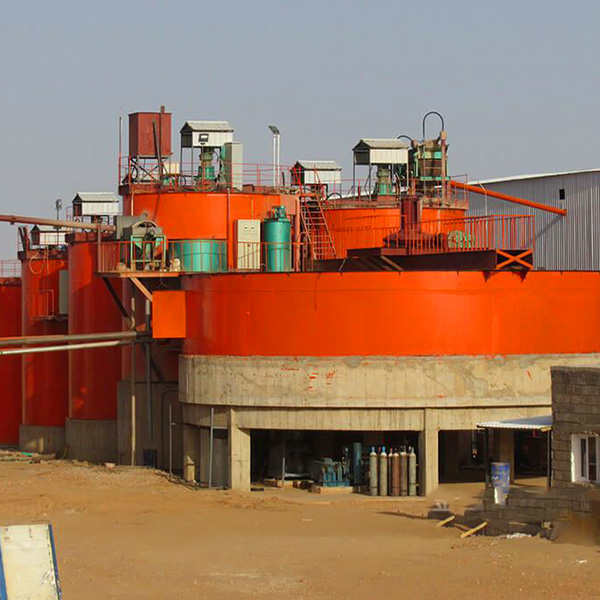

Central transmission thickener is applied to mechanical discharging of small radial flow live vertical flow sedimentation sink and concentrated sink. It can further separate the free water in the sludge to reduce sludge and improve the concentration of sludge. Then, it discharges the concentrated sludge out of the sink. The structure, construction condition and the characteristic are the same as that of the mud scraper.
Features
Parameter
| Model | Thickener Tank (m) |
Sedimentation Area (㎡) |
Rake Revolution Time (min) |
Rake Lift Height (m) |
Capacity (t·d) |
Power Of Main Motor (kw) |
Weight (t) |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter | Depth | A | B | Transmission | Lifting | |||||
| NZS-1 | 1.8 | 1.8 | 2.54 | – | 2 | 0.16 | 5.6 | 1.1 | – | 1.235 |
| NZS-3 | 3.6 | 1.8 | 10.2 | 2.5 | 0.35 | 22.4 | 1.1 | 3.194 | ||
| NZS-6 | 6 | 3 | 28.3 | 3.7 | 0.2 | 62 | 1.1 | 8.751 | ||
| NZS-9 | 9 | 3 | 63.6 | 4.34 | 0.35 | 140 | 3 | 5.1 | ||
| NZF-9 | 9 | 3 | 63.6 | 4.34 | 0.25 | 140 | 3 | 0.8 | 5.36 | |
| NZS-12 | 12 | 3.5 | 113 | 5.28 | 0.25 | 250 | 3 | – | 8.51 | |
| NZ-15 | 15 | 4.4 | 176 | 10.4 | 0.4 | 350 | 5.2 | 2.2 | 21.757 | |
| NZ-20 | 20 | 4.4 | 314 | 10.4 | 0.4 | 960 | 5.2 | 2.2 | 24.504 | |
