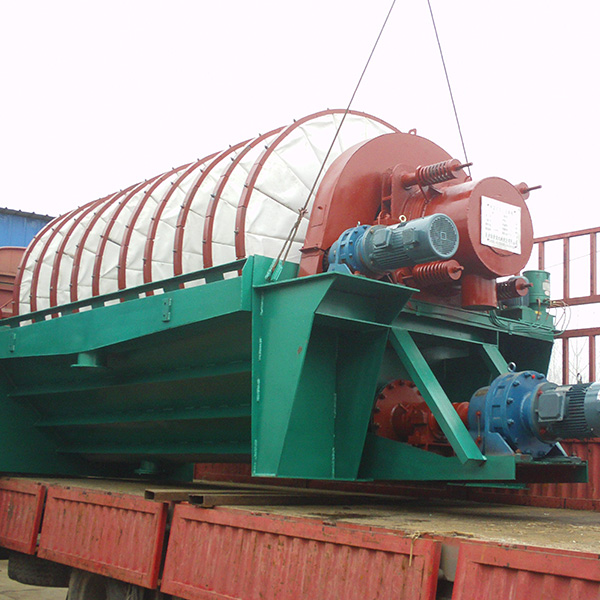

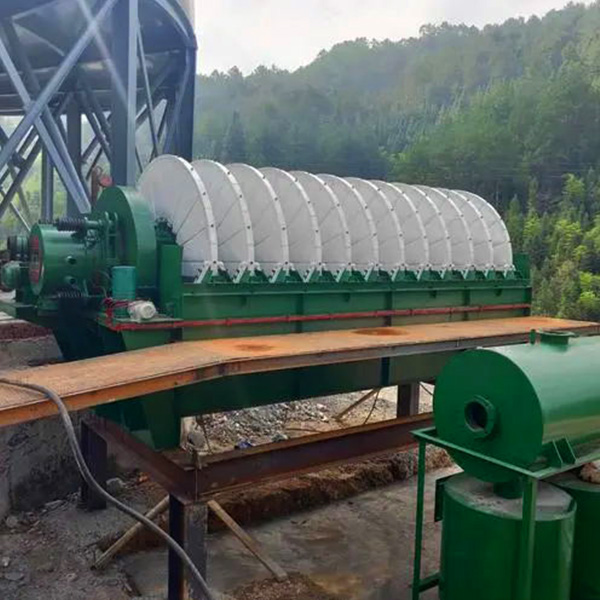

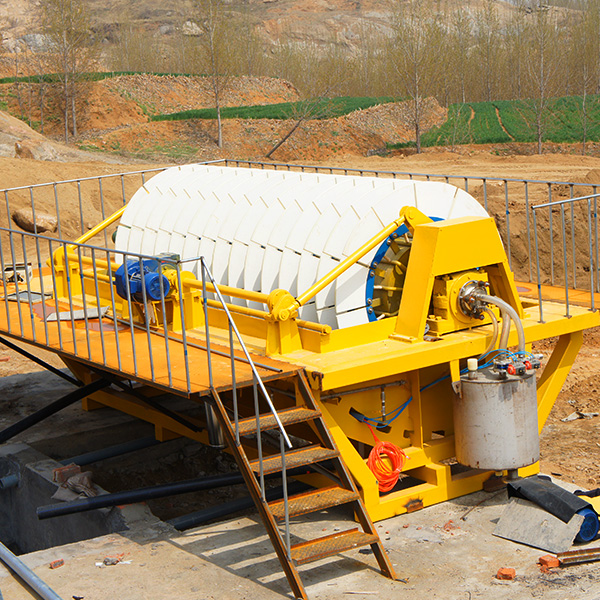

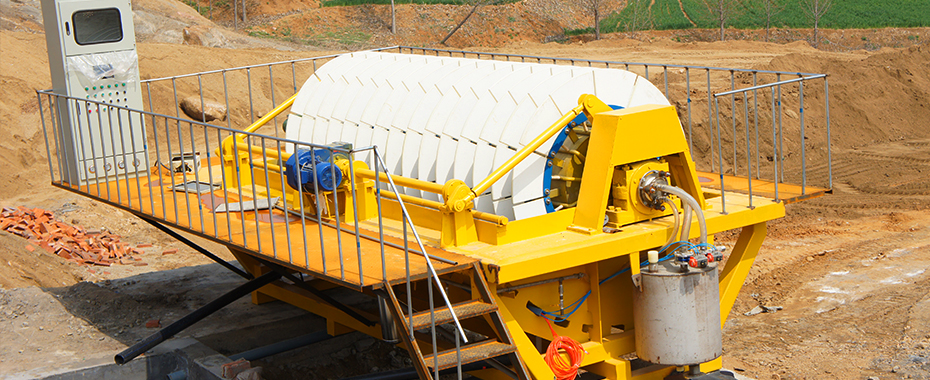

Disc Vacuum Filter makes use of the pressure difference to separate the solid particles and liquid through the porous medium, such as filtration fabric and board. And the disk type vacuum filter uses the vacuum as the filtering power to separate the solid and liquid.
SCOPE OF APPLICATION:
It can be tailored to meet your specific process needs and provides solutions for a variety of industries, ranging from the mining and minerals to the chemical and environmental industries.
Product Description
Disc vacuum filter is a machine with pressure difference to separate solid grain from liquid through the porous medium (filter cloth, filter board, etc.) It is mainly used for dehydration of non-ferrous metal ore, nonmetallic ore, the middling and tailing of coal flotation and sludge dewater, as wells as, separation of uneasily deposition suspension. It is widely used in mineral processing, food, paper, chemical and sugar industries.
Applied material : Metal Hydroxide Waste, Gypsum, Municipal Waste, Lime Softening Sludge, Potato Waste, Corn Gluten, Aluminum, Mineral Concentrates, Mineral Tailings, Starch Recovery.
Features
Parameter
| Model | PG18-4 | PG27-6 | PG39-4 | PG58-6 | PG78-8 | PG97-10 | PG116-12 | ||
|---|---|---|---|---|---|---|---|---|---|
| Filter Area (㎡) |
18 | 27 | 39 | 58 | 78 | 97 | 116 | ||
| Number Of Filter Discs | 4 | 6 | 4 | 6 | 8 | 10 | 12 | ||
| Filter Disc Diameter (mm) |
1800 | 1800 | 2700 | 2700 | 2700 | 2700 | 2700 | ||
| Slurry Tank Volume (m³) |
– | – | – | – | – | – | – | ||
| Main Drive Motor | Rotating Speed (r·min) |
0.135-1.14 | 0.135-1.14 | 0.135-1.14 | 0.15-1.44 | 0.15-1.44 | 0.148-1.98 | 0.148-1.98 | |
| Power (kw) |
1.1 | 1.1 | 1.5 | 2.2 | 4 | 4 | 4 | ||
| Stirring Mode | Paddle | Paddle | Paddle | Paddle | Paddle | Paddle | Paddle | ||
| Stirrer Motor | Rotating Speed (r· min) |
60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Power (kw) |
1.1 | 1.1 | 1.5 | 2.2 | 4 | 4 | 4 | ||
| Host Weight (t) |
3.5 | 4.36 | 5.65 | 8 | 8.98 | 10.9 | 12 | ||
| Capacity(Dry Material) (t· h) |
4.5-5.4 | 6.7-8.1 | 9.78-11.7 | 14.5-17.4 | 19.5-23.4 | 24.3-29.1 | 29-34.8 | ||
| Filter Cake Moisture (Clean Coal)(%) |
22-26 | 22-26 | 22-26 | 22-26 | 22-26 | 22-26 | 22-26 | ||
| Auxiliary Machine | Vacuum Pump | Air Volume (m³· min) |
26.03 | 26.03 | 34.8 | 68.6 | 68.6 | 108.3 | 108.3 |
| Vacuum (kPa) |
66.661 | 66.661 | 73.327 | 66.661 | 66.661 | 66.661 | 66.661 | ||
| Motor Power (kw) |
40 | 40 | 60 | 130 | 130 | 185 | 185 | ||
| Blower | Air Volume (m³·min) |
1.5 | 1.5 | 1.5 | 7.5 | 12.5 | 7.5 | 7.5 | |
| Air Pressure (MPa) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Motor Power (kw) |
17 | 17 | 17 | 40 | 40 | 40 | 40 | ||
