The hydraulic chamber filter press is a kind of intermittent pressurized filter device, which specially used for the solid-liquid separation of suspension, hydraulic chamber filter press has the advantages of excellent separation effect and easy to operate, widely in edible oil, petroleum, chemical, metallurgy, medicine, dyes, food, paper, coal washing and sewage treatment and other industries.
SCOPE OF APPLICATION:
Waste water treatment, chemicals, pharmaceutical, oil filtering as well as some other solid-liquid separation demand industries.
Product Description

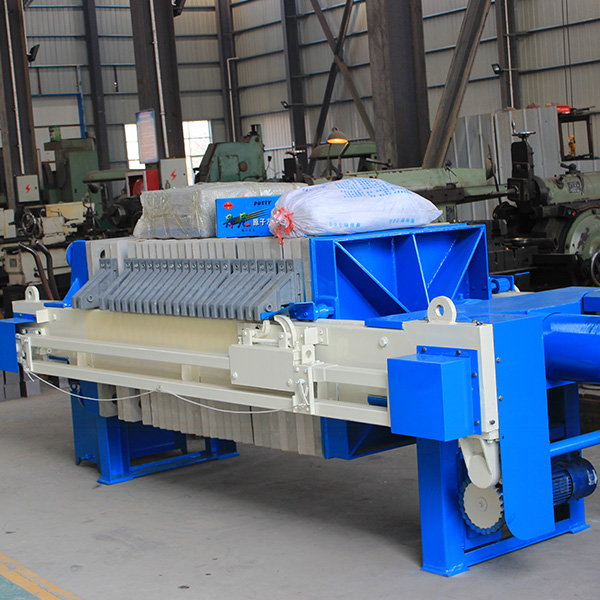

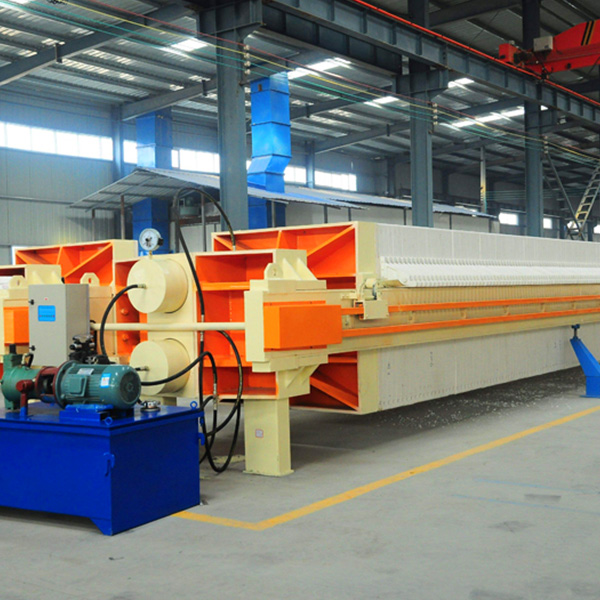

The program-controlled automatic hydraulic fitter press is an intermittent solid liquid separation equipment. It is designed and manufactured by integrating mechanics and electricity. It has a reasonable structure and is simple and convenient to operate process.
Applied material：Wastewater treatment, Food&beverage, Chemicals, Mining, Medicine, Ceramic slurry, Metallurgy, print&dyeing etc.
Features
Parameter
| Model | Filter Area (㎡) |
Number Of Filter chambers |
Filter Plate Specifications (mm) |
Filter Cake Thickness (mm) |
Filter Chamber Volume (㎡) |
Filter Pressure (MPa) |
Dimensions (mm) |
Power (kw) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| XM/AZ 20/800U | 20 | 20 | 800X800X60 | 30 | 0.287 | 0.5-1.6 | 3.5×1.35×1.16 | 2.2 | 2750 |
| XM/AZ 30/800U | 30 | 30 | 0.453 | 4.11×1.35×1.16 | 3130 | ||||
| XM/AZ 40/800U | 40 | 40 | 0.605 | 4.72×1.35×1.16 | 3420 | ||||
| XM/AZ 50/800U | 50 | 50 | 0.756 | 5.33×1.35×1.16 | 3700 | ||||
| XM/AZ 60/800U | 60 | 60 | 0.907 | 5.94×1.35×1.16 | 4110 | ||||
| XM/AZ 70/800U | 70 | 70 | 1.059 | 6.55×1.35×1.16 | 4400 | ||||
| XM/AZ 80/800U | 80 | 80 | 1.12 | 7.16×1.35×1.16 | 4740 | ||||
| XM/AZ 40/900U | 40 | 32 | 900X900X60 | 30 | 0.59 | 0.5-1.6 | 4.23×1.48×1.28 | 2.2 | 4500 |
| XM/AZ 50/900U | 50 | 40 | 0.75 | 4.72×1.48×1.28 | 4800 | ||||
| XM/AZ 60/900U | 60 | 47 | 0.88 | 5.12×1.48×1.28 | 5100 | ||||
| XM/AZ 70/900U | 70 | 63 | 1.19 | 6.12×1.48×1.28 | 5700 | ||||
| XM/AZ 60/1000U | 60 | 38 | 1000X1000X60 | 30 | 0.9 | 0.5-1.6 | 5.45×1.56×1.36 | 2.2 | 7080 |
| XM/AZ 80/1000U | 80 | 50 | 1.19 | 6.18×1.56×1.36 | 7830 | ||||
| XM/AZ 100/1000U | 100 | 62 | 1.48 | 6.91×1.56×1.36 | 8680 | ||||
| XM/AZ 120/1000U | 120 | 75 | 1.8 | 7.71×1.56×1.36 | 9250 | ||||
| XM/AZ 125/1250U | 125 | 46 | 1250X1250X65 | 32 | 1.9 | 0.5-1.6 | 6.5×1.77×1.62 | 4 | 10900 |
| XM/AZ 150/1250U | 150 | 58 | 2.41 | 7.29×1.77×1.62 | 11800 | ||||
| XM/AZ 180/1250U | 180 | 69 | 2.88 | 8.02×1.77×1.62 | 12700 | ||||
| XM/AZ 200/1250U | 200 | 77 | 3.22 | 8.55×1.77×1.62 | 13300 | ||||
| XM/AZ 220/1250U | 220 | 84 | 3.51 | 9.01×1.77×1.62 | 13900 | ||||
| XM/AZ 250/1250U | 250 | 95 | 3.98 | 9.74×1.77×1.62 | 14800 | ||||
| XM/AZ 300/1500U | 300 | 77 | 1500X1500X70 | 32 | 4.76 | 0.5-1.6 | 10.04×2.4×1.8 | 5.5 | 26500 |
| XM/AZ 320/1500U | 320 | 83 | 5.14 | 10.46×2.4×1.8 | 27190 | ||||
| XM/AZ 340/1500U | 340 | 88 | 5.45 | 10.82×2.4×1.8 | 27880 | ||||
| XM/AZ 350/1500U | 350 | 90 | 5.58 | 10.96×2.4×1.8 | 28230 | ||||
| XM/AZ 380/1500U | 380 | 98 | 6.08 | 11.53×2.4×1.8 | 29260 | ||||
| XM/AZ 400/1500U | 400 | 103 | 6.39 | 11.88×2.4×1.8 | 29950 | ||||
| XM/AZ 450/1500U | 450 | 116 | 7.21 | 12.81×2.4×1.8 | 31670 | ||||
| XM/AZ 500/1500U | 500 | 128 | 7.96 | 13.66×2.4×1.8 | 33390 | ||||
| XM/AZ 560/2000U | 560 | 80 | 2000X2000X83 | 40 | 11.16 | 0.5-1.6 | 10.6×2.9×2.45 | 11 | 56500 |
| XM/AZ 600/2000U | 600 | 86 | 12.01 | 12.11×2.9×2.45 | 58000 | ||||
| XM/AZ 630/2000U | 630 | 90 | 12.58 | 12.44X2.9X2.45 | 59000 | ||||
| XM/AZ 670/2000U | 670 | 96 | 13.43 | 12.95X2.9X2.45 | 60500 | ||||
| XM/AZ 710/2000U | 710 | 101 | 14.13 | 13.37X2.9X2.45 | 62000 | ||||
| XM/AZ 750/2000U | 750 | 107 | 14.98 | 13.87X2.9X2.45 | 63300 | ||||
| XM/AZ 800/2000U | 800 | 114 | 15.97 | 14.46X2.9X2.45 | 65200 | ||||
| XM/AZ 850/2000U | 850 | 121 | 16.96 | 15.05X2.9X2.45 | 67000 | ||||
| XM/AZ 900/2000U | 900 | 128 | 17.95 | 15.64X2.9X2.45 | 69000 | ||||
| XM/AZ 950/2000U | 950 | 135 | 18.94 | 16.22X2.9X2.45 | 70600 | ||||
| XM/AZ 1000/2000U | 1000 | 142 | 19.92 | 16.81X2.9X2.45 | 72300 | ||||
| XM/AZ 1060/2000U | 1060 | 151 | 21.2 | 17.57X2.9X2.45 | 74500 | ||||
| XM/AZ 1120/2000U | 1120 | 159 | 22.33 | 18.24X2.9X2.45 | 76800 | ||||
| XM/AZ 1180/2000U | 1180 | 168 | 23.61 | 19X2.9X2.45 | 79000 |
