The thickener is applicable to concentrate and tailings dewatering treatment in the mining application, widely used in metallurgy, chemical industry, coal, non-metallic mineral processing plant, environmental protection, and other industries. In fact, the high-efficiency mining thickener is not a gravity separation equipment, but a piece of dewatering equipment combined with characteristics of mud filtration.
SCOPE OF APPLICATION:
Wet beneficiation, coal preparation assignments of the concentrate and tail in the pulp and plant, tail coal slurry concentration and clarify, chemical industry, building materials, municipal.
Product Description

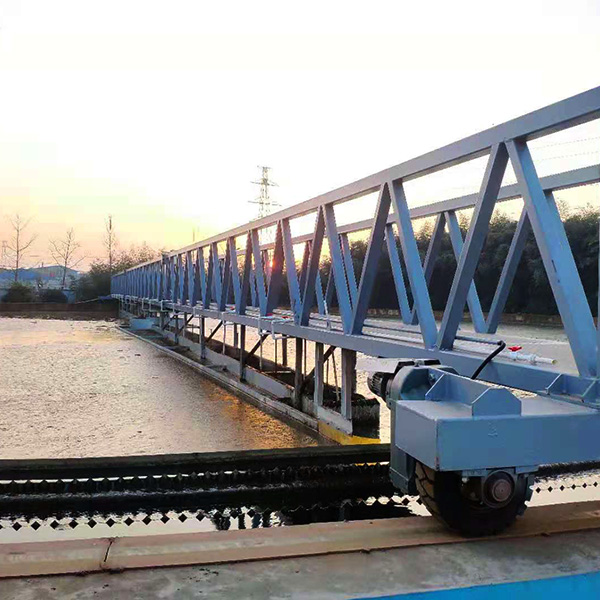

Peripheral transmission thickener has two kinds, peripheral roller transmission and peripheral gear transmission. Single row cross column rotary support or single row four-point contact ball rotary support, collector device with good insulation, exposed rotary parts with light shield.
Features
Parameter
| Model | Thickener Tank (m) |
Rake Revolution Time (min) |
Capacity (t·d-1) |
Roller Rail Diameter (m) |
Rack Rail Diameter (m) |
Motor | Total Weight (t) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter | Depth | Sedimentation Area (㎡) |
Model | Power (kw) |
speed (r·min-1) |
||||||
| NG-15 | 15 | 3.5 | 177 | 8.4 | 390 | 15.36 | – | Y132M2-6 | 5.5 | 960 | 9.12 |
| NT-15 | 15 | 3.5 | 177 | 8.4 | 390 | – | 15.56 | 5.5 | 960 | 11 | |
| NG-18 | 18 | 3.5 | 255 | 10 | 560 | 18.36 | – | 5.5 | 960 | 10 | |
| NT-18 | 18 | 3.5 | 255 | 10 | 560 | – | 18.57 | 5.5 | 960 | 12.1 | |
| NG-24 | 24 | 3.4 | 452 | 12.7 | 1000 | 24.36 | – | Y160M-6 | 7.5 | 970 | 23.3 |
| NT-24 | 24 | 3.4 | 452 | 12.7 | 1000 | – | 24.88 | 7.5 | 970 | 28.3 | |
| NG-30 | 30 | 3.6 | 707 | 16 | 1570 | 30.36 | – | 7.5 | 970 | 26.4 | |
| NT-30 | 30 | 3.6 | 707 | 16 | 1570 | – | 30.88 | 7.5 | 970 | 31.3 | |
| NT-38 | 38 | 5.06 | 1134 | 24.3 | 1600 | 38.383 | 38.629 | Y160L-8 | 7.5 | 970 | 59.82 |
| NT-45 | 45 | 5.06 | 1590 | 19.3 | 2400 | 45.383 | 45.62 | Y160L-6 | 11 | 970 | 58.64 |
| NT-50 | 50 | 5.05 | 1964 | 21.7 | 3000 | 51.779 | 52.025 | Y160L-6 | 11 | 970 | 65.92 |
| NT-53 | 53 | 5.07 | 2202 | 23.18 | 3400 | 55.16 | 55.406 | Y160L-6 | 11 | 970 | 69.44 |
| NT-100 | 100 | 5.65 | 7846 | 43 | 3030 | 100.5 | 100.77 | Y180L-6 | 15 | 970 | 198.08 |
