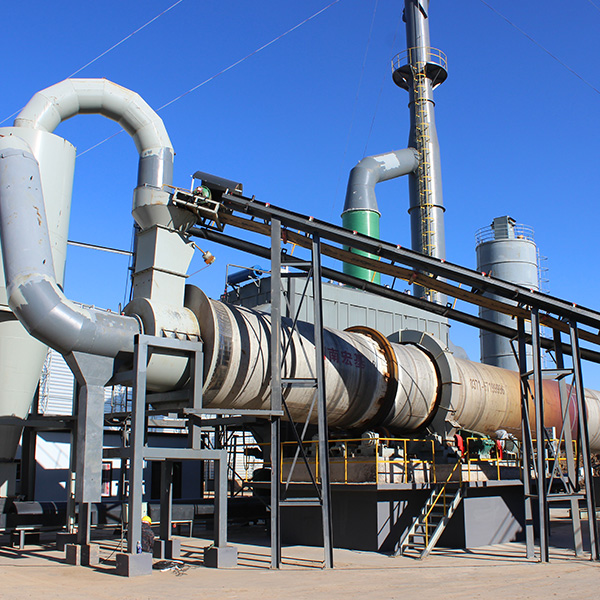

Rotary dryers are a highly efficient industrial drying option for bulk solids. They are often chosen for their robust processing capabilities and their ability to produce uniform results despite variance in feedstock.
SCOPE OF APPLICATION:
Mining and minerals, ores, fertilizer, and agriculture, specialty chemicals, and more.
Product Description

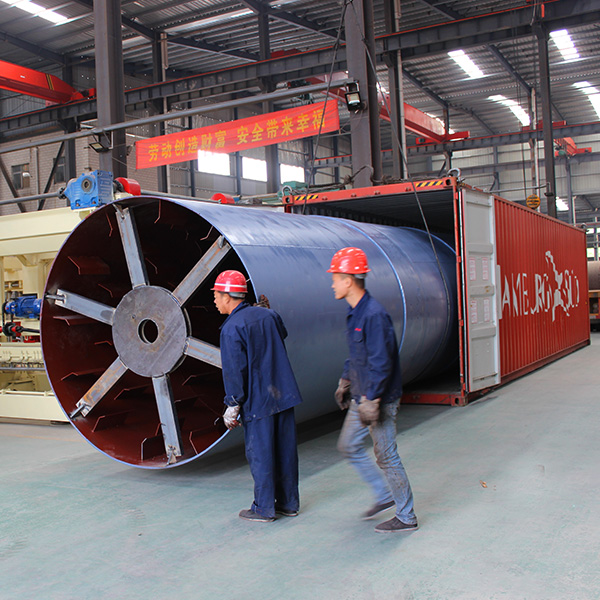

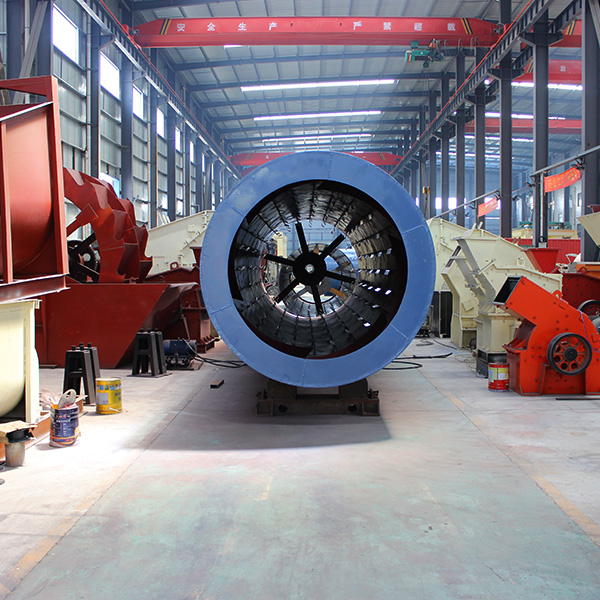

Rotary dryer is widely used in building materials, metallurgy, chemical industry, cement industry to dry slag limestone, coal powder, slag, clay and other cylinder, machine is mainly composed of rotating, lifting plate, transmission device, support device sealing ring and other components. It has the advantages of reasonable structure, excellent production, high output, low energy consumption and convenient operation.
Applied Material：Slag, nickel ore powder, manganese ore powder, gypsum powder, bentonite, fly ash, cinder, Johnstonotite, carbide slag, limestone, clay, sand, quartz sand.
Features
Parameter
| Model | Cylinder Diameter (mm) |
Cylinder Length (mm) |
Cylinder Volume (m³) |
Cylinder Rotary Speed (r/min) |
Inclination (%) |
Inlet Air Temperature (℃) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
|---|---|---|---|---|---|---|---|---|---|
| Φ0.8×8 | 800 | 8000 | 4 | 1-8 | 3-5 | ≤700 | 0.8-2 | 4 | 3.5 |
| Φ1×10 | 1000 | 10000 | 7.9 | 1-8 | 3-5 | ≤700 | 1-3.5 | 5.5 | 6.8 |
| Φ1.2×10 | 1200 | 10000 | 11 | 1-6 | 3-5 | ≤700 | 1.8-5 | 7.5 | 10.7 |
| Φ1.2×11.8 | 1200 | 11800 | 13 | 1-6 | 3-5 | ≤700 | 2-6 | 7.5 | 12.3 |
| Φ1.5×11.8 | 1500 | 11800 | 21 | 1-5 | 3-5 | ≤800 | 3.5-8 | 15 | 17.5 |
| Φ1.5×15 | 1500 | 15000 | 26.5 | 1-5 | 3-5 | ≤800 | 4-9 | 15 | 19.2 |
| Φ1.8×11.8 | 1800 | 11800 | 30 | 1-5 | 3-5 | ≤800 | 5-12 | 18.5 | 20.7 |
| Φ1.8×18 | 1800 | 18000 | 45.8 | 1-5 | 3-5 | ≤800 | 5-13 | 22 | 31.2 |
| Φ2×11.8 | 2000 | 11800 | 37 | 1-4 | 3-5 | ≤800 | 7-15 | 18.5 | 28.2 |
| Φ2×20 | 2000 | 20000 | 62.8 | 1-4 | 3-5 | ≤800 | 7-16 | 22 | 44.9 |
| Φ2.2×11.8 | 2200 | 11800 | 44.8 | 1-4 | 3-5 | ≤800 | 9-18 | 22 | 30.5 |
| Φ2.2×18 | 2200 | 18000 | 68 | 1-4 | 3-5 | ≤800 | 10-18 | 30 | 43.3 |
| Φ2.2×20 | 2200 | 20000 | 76 | 1-4 | 3-5 | ≤800 | 12-20 | 30 | 48.8 |
| Φ2.4×20 | 2400 | 20000 | 91 | 1-4 | 3-5 | ≤800 | 15-25 | 37 | 60.5 |
| Φ2.4×23.6 | 2400 | 23600 | 109 | 1-4 | 3-5 | ≤800 | 16-26 | 45 | 69.8 |
| Φ2.8×20 | 2800 | 20000 | 123 | 1-3 | 3-5 | ≤800 | 18-28 | 55 | 65 |
| Φ2.8×28 | 2800 | 28000 | 172 | 1-3 | 3-5 | ≤800 | 20-30 | 75 | 75 |
| Φ3×28 | 3000 | 28000 | 198 | 1-3 | 3-5 | ≤800 | 22-32 | 90 | 91 |
| Φ3.2×32 | 3200 | 32000 | 257 | 1-3 | 3-5 | ≤800 | 24-35 | 110 | 129 |
| Φ3.6×36 | 3600 | 36000 | 366 | 1-3 | 3-5 | ≤800 | 30-43 | 132 | 185 |
| Φ3.8×36 | 3800 | 36000 | 408 | 1-3 | 3-5 | ≤800 | 32-48 | 160 | 218 |
| Φ4×36 | 4000 | 36000 | 452 | 1-3 | 3-5 | ≤800 | 40-50 | 160 | 265 |
