It is suitable for slurries containing suspended solid particles in the conveying fluid, and the maximum particle diameter of the conveying slurry should not be greater than 80% of the minimum size of the flow cross section. The maximum concentration of pulp should not exceed 60%.
SCOPE OF APPLICATION:
Metal dressing and smelting plant, power plants, sand and gravel plants, coal preparation plants, chemical plants, water conservancy projects, paper mills, ceramics and glass plants, iron and steel plants, deep mines, and other fields.
Product Description

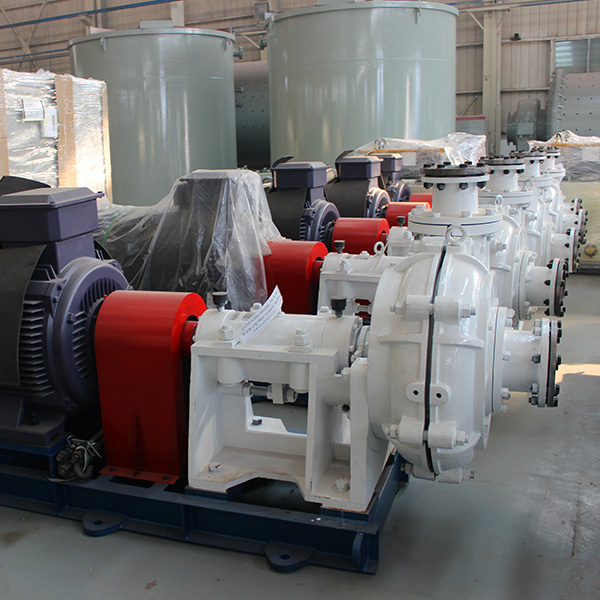

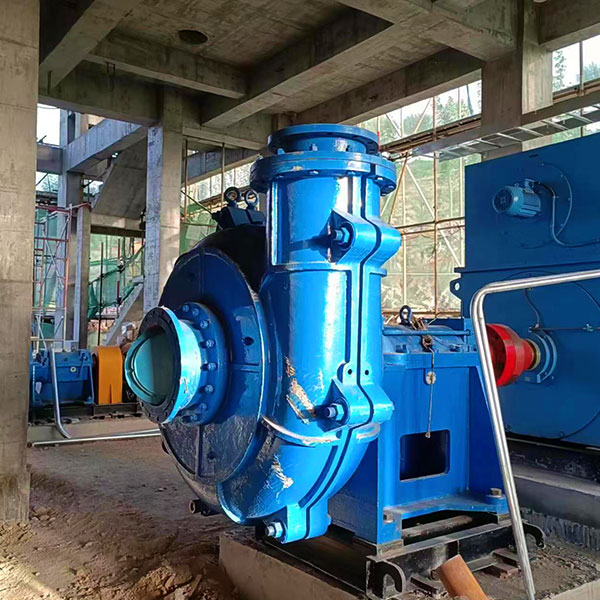

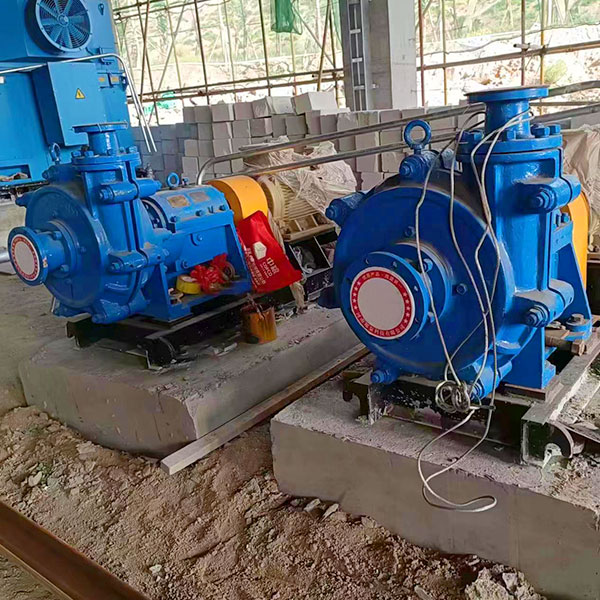

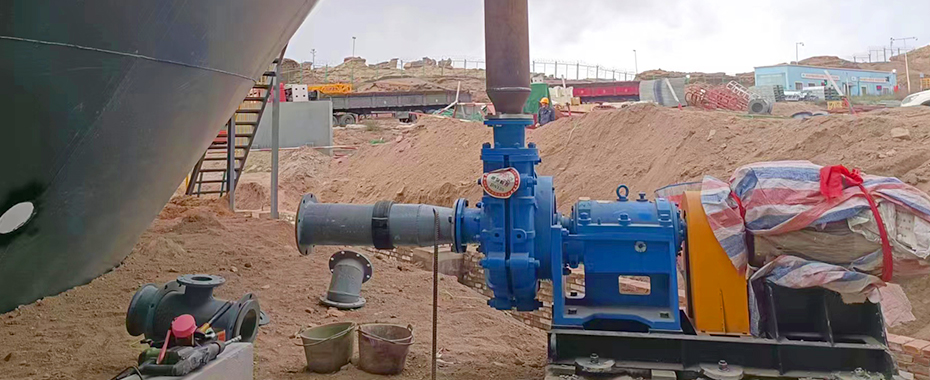

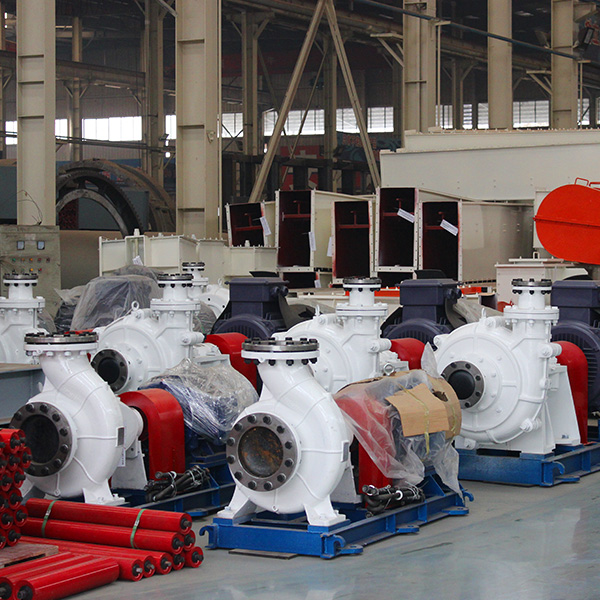

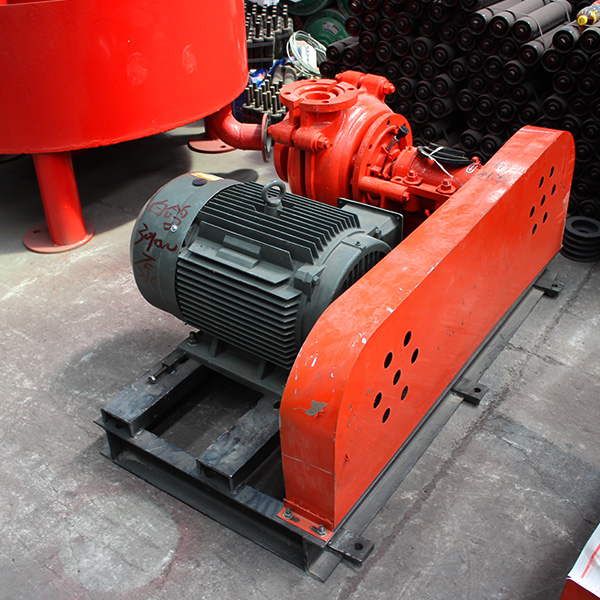

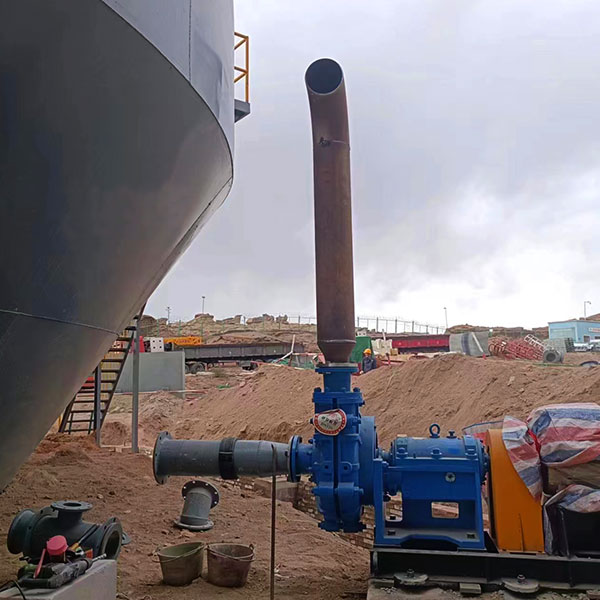

The slurry pump is a large-scale centrifugal pump, which is mainly used to transport the medium containing abrasive solid particles. It’s widely used for slurry transportation in metallurgical concentrators, hydraulic ash removal in thermal power plants, coal slurry and heavy medium transportation in coal washing plants, slurry lifting in sand washing plants, river dredging, etc. In the alumina production process, the slurry pump mainly transports raw material slurry with high temperature, strong abrasion resistance, and large solid particle content, so it is also called a slag-slurry pump. The slurry pump is indispensable universal equipment in the mining, chemical, coal, and metal smelting industries.
Applied material：Aggregates, coal, concrete, dewatering, fines recovery, frac sand, mining; tailings & water, management, washing & classifying, etc.
Features
Parameter
| Model | Speed (r/min) |
Flow (m³/h) |
Stroke (m) |
Highest Efficiency (%) |
Required NPSH (m) |
Max. Power Allowed (kw) |
|---|---|---|---|---|---|---|
| 50LZ-500 | 700-1480 | 27-111 | 22.3-110.7 | 45.1 | 3.0 | 90 |
| 65LZ-300 | 700-1480 | 23-80 | 7.4-35.8 | 63.5 | 2.0 | 15 |
| 80LZ-360 | 700-1480 | 46-190 | 9.6-51.5 | 68.2 | 2.5 | 45 |
| 80LZ-520 | 700-1480 | 51-242 | 22.1-109.8 | 56.3 | 2.1 | 160 |
| 100LZ-420 | 700-1480 | 66-275 | 14.7-71 | 71 | 2.5 | 90 |
| 100LZ-500 | 700-1480 | 85-360 | 20.5-101.6 | 71.3 | 2.5 | 160 |
| 150LZ-500 | 490-980 | 115-460 | 9.5-43.1 | 78 | 2.5 | 75 |
| 200LZ-600 | 490-980 | 218-870 | 13.9-64 | 82.7 | 2.5 | 200 |
