Process Introduction:
The composition of barite ore is complex, and there are strict requirements on the fineness of the product in application. The common barite beneficiation process is hand selection, gravity separation, flotation, and magnetic separation.

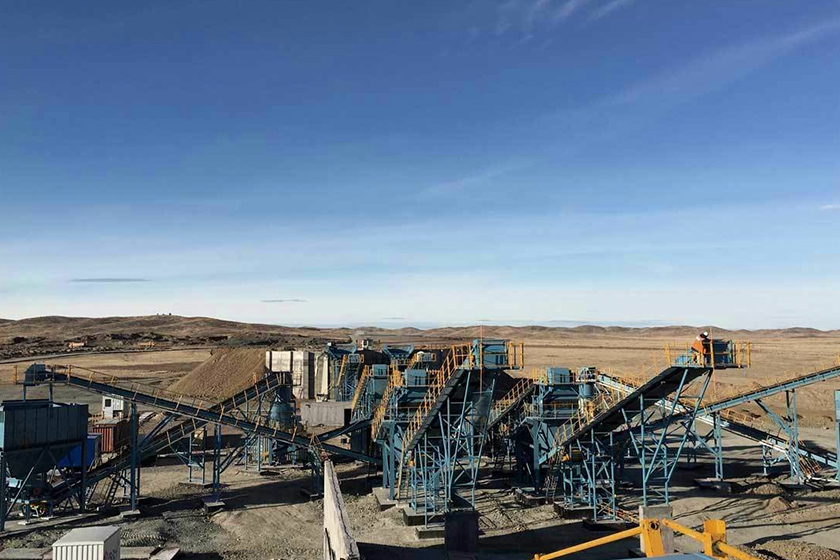

Hongji can provide you with a complete set of barite processing plant and equipment according to the specific types of barite mines to satisfy your needs.
Generally, use crushing, screening, and jig to get high grade concentrate (grade up to 80%). Crushing section use jaw crusher and two stage crushing process to crush baryte. Screen section use circular vibrating screen, which have large processing capacity, high efficiency, simple and useful. It is the ideal equipment to screen baryte. Jig selecting process use two kinds of jig to select the coarse and fine particle respectively after crushing.

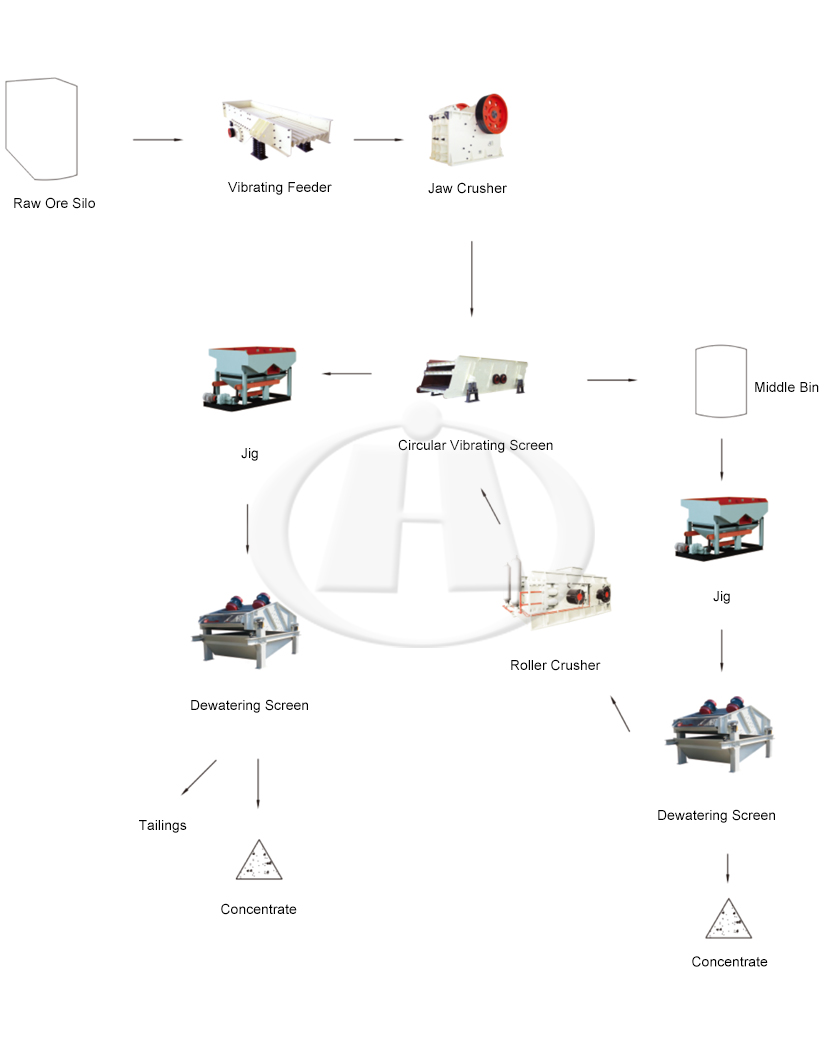

Barite Gravity Separation
1. Crushing: barite is brittle and fragile, so the crushing process mainly adopts simple and practical jaw crusher; after the first stage of crushing, the material is transported to the second stage of fine jaw crusher for secondary crushing.
2. Screening: Jig separation has strict requirements on the particle size of materials, and a screening process needs to be set up. The circular vibrating screen screens the broken products.
3. Stock bin and feeder: The function of the silo is to avoid sudden and small workload of the previous equipment, and properly store certain materials. The function of the vibrating feeder is to feed the jig material evenly and stably.
4. Gravity separation: Crushed products are divided into different particle sizes and enter the jig concentrator for separation.

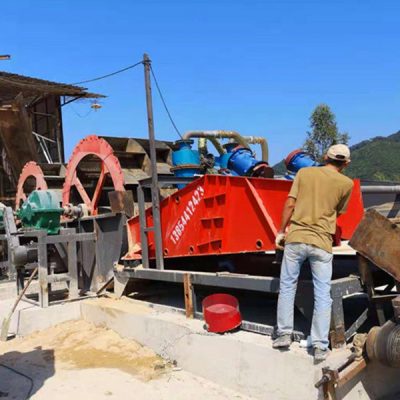

5. Dewatering stage: Design a suitable mechanical dehydration process according to the requirements.
